Overview of SDM20U30Q-7 from Diodes Incorporated

The SDM20U30Q-7 is a high-performance Schottky barrier diode designed by Diodes Incorporated, a leading manufacturer in the semiconductor market. This diode is engineered to provide superior efficiency in a variety of electronic applications, making it an ideal choice for designers looking to enhance power management and signal rectification in their circuits.

Key Features

• Low Forward Voltage Drop: The device boasts a low forward voltage drop, which translates to reduced power loss and improved system efficiency, particularly important in battery-powered applications.
• High Current Capability: With its ability to handle high current, the SDM20U30Q-7 is suitable for high-frequency rectification and free-wheeling applications in power supplies and other power-switching applications.

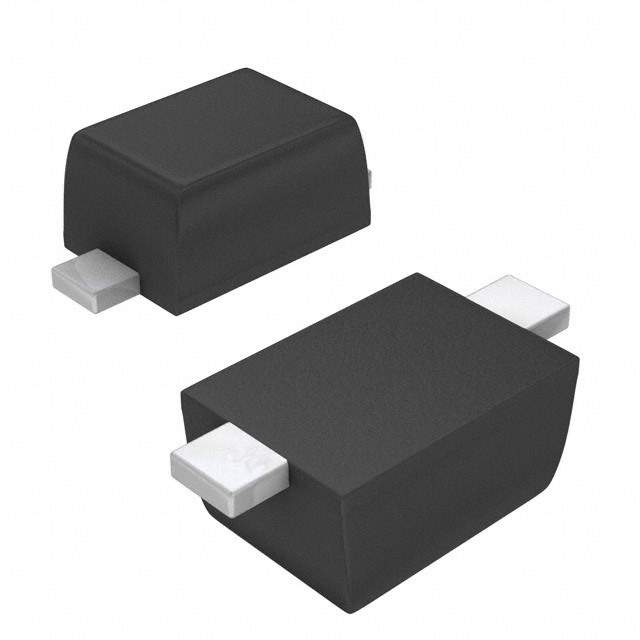

• Surface Mount Package: The diode is housed in a compact SOD-123FL package, designed for surface mount technology (SMT), which allows for efficient assembly and space-saving on PCBs.
• Low Thermal Resistance: Its low thermal resistance ensures that the diode dissipates heat effectively, maintaining stability and reliability even under high current operation.
• Lead-Free and RoHS Compliant: In compliance with environmental regulations, the SDM20U30Q-7 is lead-free and RoHS compliant, minimizing the environmental impact and allowing for use in a wide range of global markets.

Applications

The versatility of the SDM20U30Q-7 makes it suitable for a diverse range of applications, including:

• DC-DC Converters
• Power Supply Units
• LED Lighting
• Automotive Applications
• Portable Devices and Battery Charging Circuits
• Voltage Clamping and Protection Circuits

Technical Specifications

The SDM20U30Q-7 has an impressive set of technical specifications that include a maximum repetitive reverse voltage of 30V, forward continuous current of 2A, and a maximum forward voltage of 0.55V at 2A. Its operating junction temperature range is from -55°C to +150°C, allowing for performance in extreme conditions.

In conclusion, the SDM20U30Q-7 from Diodes Incorporated stands out as a high-efficiency, reliable component suitable for modern electronic systems where performance and space are at a premium.
