Product Overview: SDM05U40CSP-7

The SDM05U40CSP-7 is a high-performance Schottky barrier diode designed and manufactured by Diodes Incorporated, a leading global manufacturer and supplier of high-quality application-specific standard products within the broad discrete, logic, analog, and mixed-signal semiconductor markets. This product is a testament to Diodes Incorporated's commitment to providing energy-efficient and compact solutions for electronic circuits.

Key Features

• Low Forward Voltage Drop: The diode features a low forward voltage drop, which enhances its efficiency in applications by minimizing power loss during operation.
• High Surge Current Capability: With its robust design, the SDM05U40CSP-7 can withstand high surge currents, making it suitable for applications that may experience transient overcurrent conditions.

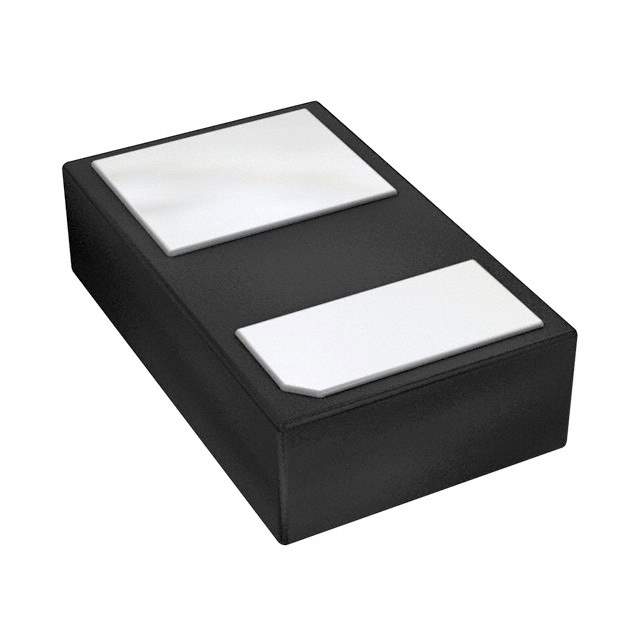

• Compact Footprint: The component is housed in a small CSP package, which allows for high-density mounting and is ideal for space-constrained applications.
• Lead-Free and RoHS Compliant: This product is environmentally friendly, as it is made without lead and other hazardous substances, complying with the RoHS directive.
• Automotive Qualification: The SDM05U40CSP-7 is qualified for use in automotive applications, ensuring reliability and performance under the stringent conditions typical of automotive environments.

Applications

The SDM05U40CSP-7 Schottky barrier diode is versatile and can be used in a variety of applications, including but not limited to:

• Power management systems
• DC-DC converters
• Automotive applications
• High-frequency rectification circuits
• Reverse battery protection
• Portable devices
• Switching power supplies

Technical Specifications

The SDM05U40CSP-7 boasts a range of technical specifications that make it suitable for a wide array of applications:

• Package: CSP
• Maximum Forward Voltage: 0.4V
• Maximum Reverse Leakage Current: 50µA at 40V
• Operating Temperature Range: -55°C to +150°C

With its combination of low power loss, high surge current capability, compact size, and compliance with environmental standards, the SDM05U40CSP-7 from Diodes Incorporated is an excellent choice for designers looking for a reliable and efficient Schottky barrier diode for their electronic applications.
