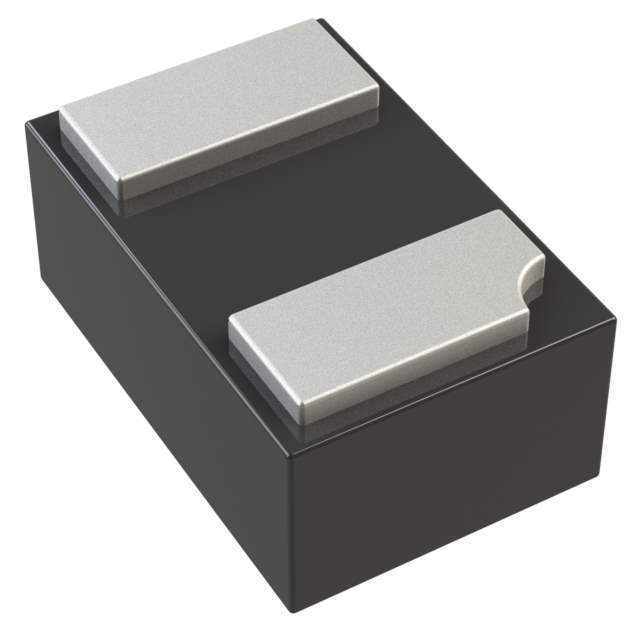

SBRT05U20LPSQ-7B

Name: SBRT05U20LPSQ-7B
Brand: Diodes Incorporated
SKU: WS1310145
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	SBRT05U20LPSQ-7B
Manufacturer	Diodes Incorporated
Catalog	Diodes, Rectifiers - Single
Description	DIODE SBR 20V 500MA 2DFN
Datasheet	SBRT05U20LPSQ-7B Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Diodes Incorporated
Category	Discrete Semiconductor Products> Diodes> Rectifiers Single Diodes
Part Status	Active
Technology	Super Barrier
Voltage - DC Reverse (Vr) (Max)	20 V
Current - Average Rectified (Io)	500mA
Voltage - Forward (Vf) (Max) @ If	390 mV @ 500 mA
Current - Reverse Leakage @ Vr	50 µA @ 20 V
Capacitance @ Vr, F	14pF @ 20V, 1MHz
Mounting Type	Surface Mount
Package / Case	0402 (1006 Metric)
Supplier Device Package	X2-DFN1006-2
Operating Temperature - Junction	-65°C ~ 150°C
Win Source Part Number	WS1310145-SBRT05U20LPSQ-7B
Ultra Librarian 3D Model	Ultra Librarian SBRT05U20LPSQ-7B CAD Model

Alternative Products

Description

Packaged in the compact X2-DFN1006-2, the Trench SBR, the SBRT05U20LPSQ provides ultra-low forward voltage drop (VF) and excellent low reverse leakage stability at high temperatures. It is ideal for use in rectification, freewheeling or polarity protection for applications such as:

● SMPS<br />● General Switching Applications ● Reverse Polarity Protection ● DC-DC Converters
