Product Overview: SBR2U100LP-7 - Diodes Incorporated

The SBR2U100LP-7 is a high-performance Schottky barrier rectifier designed and manufactured by Diodes Incorporated, a leading global manufacturer and supplier of high-quality application-specific standard products within the broad discrete, logic, and analog semiconductor markets. This rectifier is engineered to provide superior switching performance and higher reliability than standard silicon-based rectifiers.

Key Features

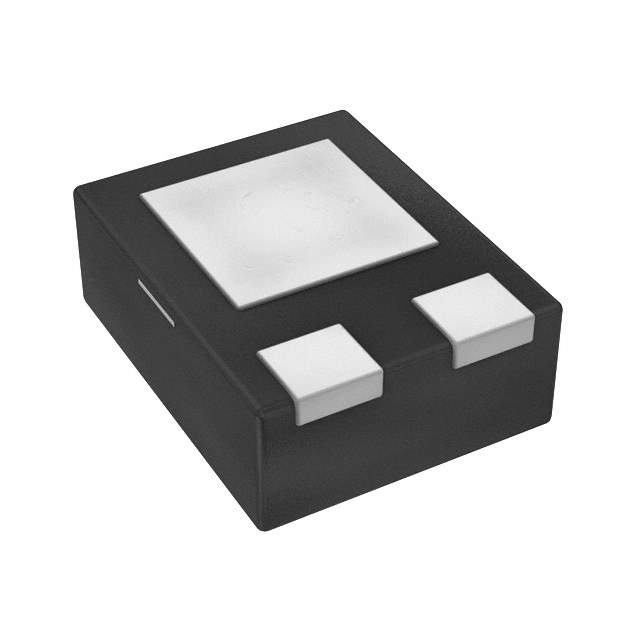

• Low Profile Package: Designed with a powerDI-123 package, the SBR2U100LP-7 boasts an ultra-low profile of just 0.6mm, making it suitable for slim design applications where space is a premium.
• High Surge Capability: With its robust surge capability, this device can withstand high surge currents, ensuring reliability and stability in demanding situations.
• Low Power Loss and High Efficiency: Its low forward voltage drop contributes to reduced power loss, which leads to higher efficiency in the circuit operation.
• RoHS Compliant: The SBR2U100LP-7 meets the Restriction of Hazardous Substances (RoHS) directive, making it an environmentally friendly choice for electronic designs.
• Lead-Free Finish: The product features a lead-free finish, further contributing to its environmental compliance.
• Halogen and Antimony Free: It is also free from halogen and antimony, aligning with current environmental standards for electronic components.

Applications

The SBR2U100LP-7 is versatile and can be used in a variety of applications. It is particularly well-suited for use in:

• Low voltage, high frequency inverters
• Free-wheeling diodes
• DC/DC converters
• Power supply applications

Technical Specifications

The device features a maximum average rectified current of 2A and a peak reverse voltage of 100V. It also offers a fast switching capability, which is crucial for high-efficiency power supplies.

Conclusion

The SBR2U100LP-7 from Diodes Incorporated is an ideal choice for designers looking for a low-profile, high-efficiency Schottky barrier rectifier. With its advanced features such as high surge capability, low power loss, and compliance with environmental standards, this rectifier is well-suited for modern, compact, and energy-conscious electronic applications.
