Product Overview: SBR10U200P5Q-13

The SBR10U200P5Q-13 is a high-performance, surface-mount Super Barrier Rectifier (SBR) designed and manufactured by Diodes Incorporated. This rectifier is specifically engineered to offer superior power efficiency and high-temperature operation, making it an ideal choice for a wide range of power management applications. The SBR technology combines the low forward voltage drop of a Schottky diode with the surge handling capability of a traditional silicon diode, resulting in a device that can efficiently handle high current and voltage without compromising on performance.

Key Features

• High Forward Surge Capability: This component is capable of withstanding high surge currents, making it suitable for applications that experience transient over-voltage conditions.
• Low Power Loss: With its low forward voltage drop, the SBR10U200P5Q-13 ensures minimal power loss during operation, contributing to the overall efficiency of the system it is used in.
• High Temperature Operation: The device is designed to perform reliably in environments with elevated temperatures, maintaining its integrity and functionality.
• RoHS Compliant: The rectifier adheres to the Restriction of Hazardous Substances (RoHS) directive, making it an environmentally friendly choice for electronic designs.

Applications

• Switching power supplies
• Converters
• Free-wheeling diodes
• Reverse battery protection
• Power management devices

Product Specifications

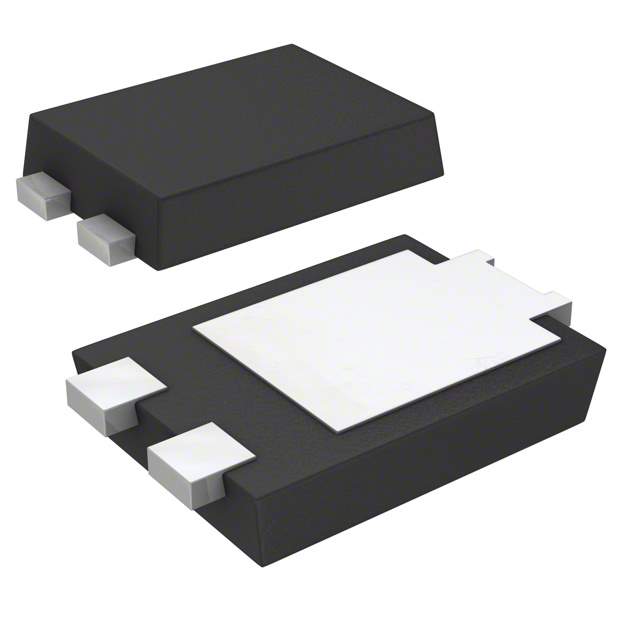

The SBR10U200P5Q-13 is packaged in a PowerDI5 package, which is optimized for reduced thermal resistance and small footprint on PCBs. It supports a peak repetitive reverse voltage (Vrrm) of 200V and a forward continuous current (If) of 10A, making it robust enough for handling high-power applications. The device also features a low typical forward voltage drop (Vf) of 0.69V at 5A, which contributes to its efficiency. The maximum operating junction temperature is specified at 150°C, allowing for stable operation under thermal stress.

With its combination of efficiency, durability, and high-temperature performance, the SBR10U200P5Q-13 from Diodes Incorporated stands out as a versatile and reliable component for modern electronic circuits that demand high efficiency and thermal resilience.
