Diodes Incorporated PI74FCT541TQE Octal Buffer/Line Driver

The PI74FCT541TQE is a high-performance octal buffer/line driver designed by Diodes Incorporated, renowned for its expertise in semiconductor technology. This integrated circuit is part of the FCT series, which is well-known for its fast speed and robust performance. The PI74FCT541TQE is specifically engineered to interface with high-speed systems, providing a bridge between critical components with differing voltage thresholds.

Constructed with advanced CMOS technology, the PI74FCT541TQE offers an optimal combination of low power consumption and high-speed operation. This makes it an excellent choice for power-sensitive applications, such as battery-powered devices, while still delivering the performance required for high-speed data processing tasks.

The device features eight non-inverting buffers with 3-state outputs, which can be employed as a memory address driver, clock driver, or bus-oriented transmitter/receiver. The 3-state outputs ensure that multiple units can be connected to a common bus without the risk of contention, as the outputs can be effectively disconnected from the bus by placing them in a high-impedance state.

Key attributes of the PI74FCT541TQE include:

• Octal non-inverting buffers with 3-state outputs
• Compatible with TTL input levels
• High drive capability: -32mA IOH and 64mA IOL
• Low quiescent power consumption: 80µA maximum (ICCT)
• High-speed operation: tPD 5.5ns max (at TA = 25°C)
• Operating voltage range of 4.5V to 5.5V
• Industrial operating temperature range from -40°C to +85°C

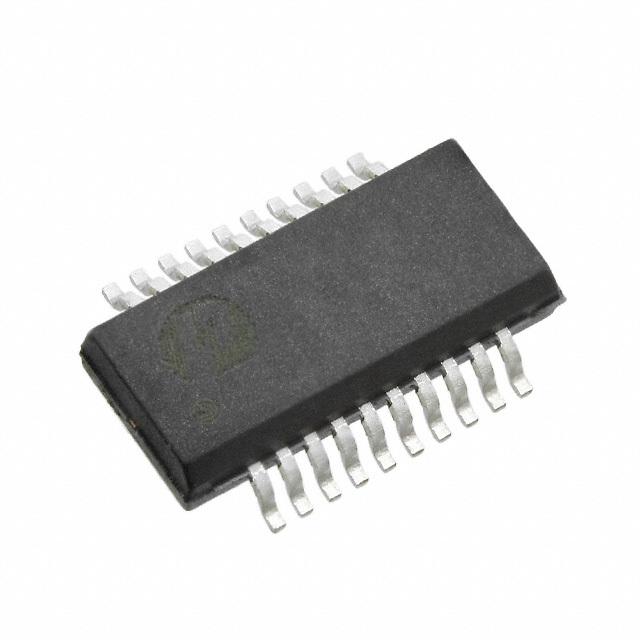

• Available in a 20-pin QSOP package

This device also features a built-in power-up 3-state control and ground bounce control, providing a stable operation during power-up or power-down sequences and under noisy conditions. The PI74FCT541TQE is packaged in a space-saving QSOP, which is ideal for compact designs where board space is at a premium.

With its combination of speed, power efficiency, and robustness, the PI74FCT541TQE from Diodes Incorporated is an excellent choice for a wide range of applications, including computing, networking, telecommunications, and industrial control systems. Its reliability and versatility make it a go-to component for designers looking to enhance system integrity and performance.
