Diodes Incorporated PI6ULS5V9515AZEEX Product Overview

The PI6ULS5V9515AZEEX is a high-performance, low-power I2C-bus/SMBus Repeater from Diodes Incorporated, designed to provide bidirectional buffering for both data (SDA) and clock (SCL) lines. This component enables the extension of an I2C-bus by buffering both the high and low sides of the bus, ensuring signal integrity even in environments with high capacitance or where multiple devices are connected.

Key Features

• Compatibility: The device supports standard mode, fast mode, and fast mode plus of I2C-bus and SMBus protocols, making it a versatile solution for a wide range of applications.
• Voltage Level Translation: It operates between 1.65V and 5.5V on both sides, which allows for voltage level translation between 1.8V, 2.5V, 3.3V, and 5V buses.
• Enhanced Signal Integrity: The PI6ULS5V9515AZEEX ensures strong signal drive and prevents data loss over extended cable lengths, allowing for reliable communication in complex systems.
• Hot-Swap Capability: The built-in hot-swap capability allows devices to be inserted into or removed from a live backplane without disrupting the bus.
• Low Standby Current: It features a low standby current which is crucial for power-sensitive applications.
• Robust ESD Protection: The device includes high ESD protection on the bus pins, safeguarding against electrostatic discharge events.

Applications

The PI6ULS5V9515AZEEX is ideally suited for a broad spectrum of applications, including:

• Server and telecom infrastructure
• Industrial control systems
• Embedded systems
• Data acquisition systems
• Automotive networks

Package and Quality

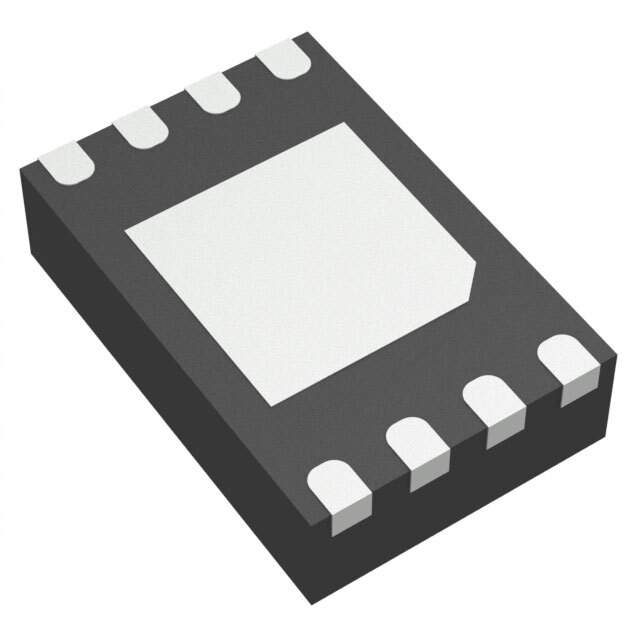

This repeater comes in a compact, lead-free, RoHS-compliant package, making it suitable for environmentally sensitive applications. Its design is optimized for minimal power consumption while maintaining high performance, ensuring reliability and efficiency in your designs. Diodes Incorporated's commitment to quality ensures that the PI6ULS5V9515AZEEX meets the stringent requirements of the electronics industry for consistent performance and durability.

With the PI6ULS5V9515AZEEX, system designers and engineers can confidently implement an I2C-bus extension with improved signal integrity, robust protection features, and versatile voltage level translation, all of which contribute to a more reliable and flexible system architecture.
