The PI3V712-AZLE from Diodes Incorporated is a high-performance, 6-channel, 2:1 multiplexer/demultiplexer switch IC designed for signal switching applications. This advanced switch is ideal for applications that require routing of high-speed signals, including USB 2.0, PCI Express, SATA, and other serial and parallel interfaces.

Key Features

• High Bandwidth: With a bandwidth of 3.0 GHz, the PI3V712-AZLE ensures minimal signal degradation and supports high-speed data transfer rates, making it suitable for a wide range of high-performance applications.
• Low On-Resistance: The switch features low on-resistance (Ron) of 6 ohms typical, which reduces signal attenuation and improves signal integrity.
• Low Crosstalk: A low crosstalk performance minimizes signal interference, allowing for cleaner and more accurate signal routing.
• Power-Off Protection: The PI3V712-AZLE provides power-off protection, ensuring that signals are isolated and protected when the power is off.
• ESD Protection: Enhanced Electrostatic Discharge (ESD) protection is integrated into the device, safeguarding it against damage from static electricity and improving system reliability.
• Wide Operating Temperature Range: The device operates over an industrial temperature range of -40°C to +85°C, making it suitable for use in harsh environments.

Applications

The PI3V712-AZLE is designed for a variety of applications across multiple industries. It is particularly well-suited for:

• Mobile Devices
• Computing Devices
• Networking Equipment
• Consumer Electronics
• Industrial Systems

Package and Availability

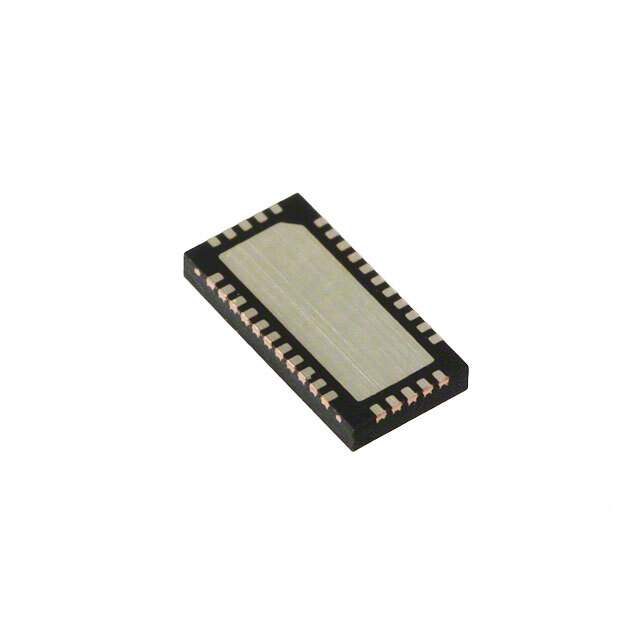

The PI3V712-AZLE is offered in a space-saving 42-TQFN package, which is RoHS compliant and compatible with standard PCB assembly processes. It is available for purchase through Diodes Incorporated and its authorized distributors, ensuring easy integration into your design and procurement processes.

For detailed specifications, application notes, and additional resources, interested parties are encouraged to visit the Diodes Incorporated website or contact their sales representatives for further assistance.
