Overview of PI3USB10LP-BZMEX

The PI3USB10LP-BZMEX is a high-performance, low-power USB 2.0 switch from Diodes Incorporated, designed to facilitate the multiplexing of USB 2.0 signals. This advanced switch is an ideal solution for applications requiring switching between a USB host and multiple devices or for sharing USB peripherals among multiple hosts. With its compact package and low-power consumption, the PI3USB10LP-BZMEX is especially suitable for portable electronic devices where space and battery life are critical considerations.

Key Features

• USB 2.0 Compliance: The switch is fully compliant with USB 2.0 standards, ensuring seamless integration with existing USB systems and devices.
• Low On-Capacitance (C_on): The device offers a low capacitance, which minimizes signal attenuation and preserves signal integrity for high-speed data transmission.
• Low Power Consumption: Designed for energy efficiency, the PI3USB10LP-BZMEX consumes minimal power, making it suitable for battery-powered devices.
• High Bandwidth: With a bandwidth that exceeds the requirements of USB 2.0, this switch ensures reliable performance even at full data rates.
• Bi-Directional Operation: The switch can route signals in both directions, allowing for versatile configurations in USB systems.
• ESD Protection: The device includes integrated ESD protection circuits to safeguard against electrostatic discharges, enhancing the durability of the end product.

Applications

The PI3USB10LP-BZMEX is versatile and can be used in a variety of applications, including but not limited to:

• Smartphones and Tablets
• Personal Computers and Laptops
• USB Hubs and Docking Stations
• Consumer Electronics
• Portable Media Players

Package and Quality

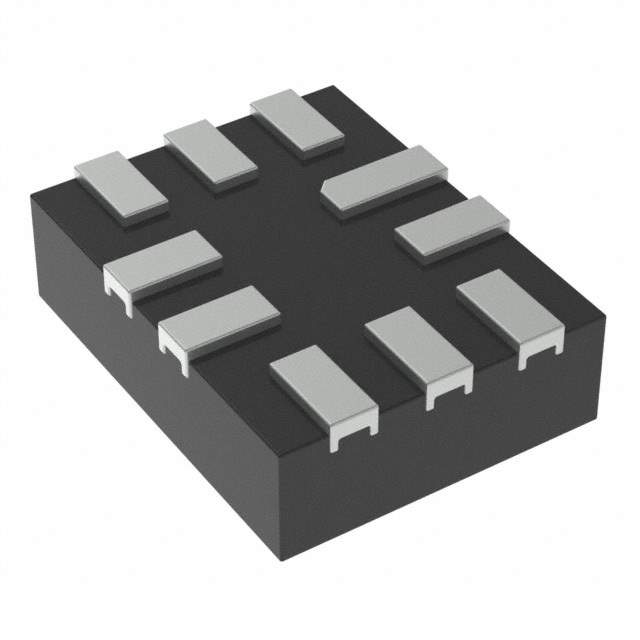

The product is offered in a space-saving 10-pin QFN package, which is ideal for compact PCB layouts. Diodes Incorporated ensures high-quality manufacturing standards, providing reliability and performance that meet the requirements of the most demanding applications.

In summary, the PI3USB10LP-BZMEX from Diodes Incorporated is a superior choice for designers looking to incorporate a USB 2.0 switch into their designs, offering a perfect blend of performance, power efficiency, and compact form factor.
