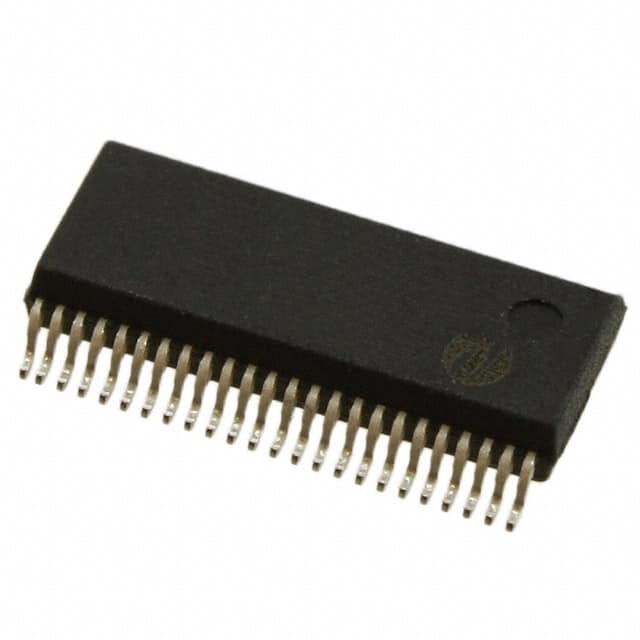

PI3HDMI1210-ABE

Part No PI3HDMI1210-ABE
Manufacturer Diodes Incorporated
Catalog Interface - Specialized
Description IC INTERFACE SPECIALIZED 48BQSOP / HDMI Interface 48-BQSOP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Interface - Specialized
Mfr Diodes Incorporated
Package Tube
Product Status Obsolete
Applications HDMI
Voltage - Supply 3.3V
Package / Case 48-FSOP (0.154", 3.90mm Width)
Supplier Device Package 48-BQSOP
Mounting Type Surface Mount
Base Product Number PI3HDMI1210
Standard Package 49 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 889105-PI3HDMI1210-ABE
Ultra Librarian 3D Model Ultra Librarian PI3HDMI1210-ABE CAD Model

Description

Introducing the PI3HDMI1210-ABE from Diodes Incorporated

The PI3HDMI1210-ABE is a cutting-edge HDMI 1.3 switch that offers an unparalleled high-definition multimedia interface for both video and audio signals. Manufactured by Diodes Incorporated, a leading company in the semiconductor market, this product is designed to meet the increasing demands of the modern home entertainment and multimedia industry.

Key Features

  • High-Performance Switching: With the ability to switch between three HDMI sources, the PI3HDMI1210-ABE provides users with the flexibility to connect multiple devices without compromising on quality.
  • Advanced HDMI 1.3 Support: The device is compliant with HDMI 1.3 specifications, ensuring it can handle the latest audio and video formats, including deep color and high-definition audio.
  • High Bandwidth: The switch supports a bandwidth of up to 3.4 Gbps per channel, offering a total of 10.2 Gbps across all channels. This ensures smooth and uninterrupted streaming of high-definition content.
  • Integrated Equalizer: The built-in equalizer compensates for signal degradation over long cable runs, maintaining the integrity and quality of the audio and video signals.
  • Low Power Consumption: Designed for energy efficiency, the PI3HDMI1210-ABE minimizes power consumption, making it an eco-friendly choice for your multimedia setup.

Applications

The versatility of the PI3HDMI1210-ABE makes it ideal for a wide range of applications, including:

  • Home Theater Systems
  • Digital Signage
  • Professional AV Systems
  • Conference Room Displays
  • Gaming Consoles

Technical Specifications

The PI3HDMI1210-ABE is equipped with three HDMI inputs and one HDMI output, supporting video resolutions up to 1080p. The device also supports HDCP 1.2 protocols, ensuring compatibility with content protection requirements.

Quality and Reliability

Diodes Incorporated is known for its commitment to quality, and the PI3HDMI1210-ABE is no exception. Each switch is rigorously tested to ensure it meets the highest standards of performance and reliability.

Whether you're setting up a home theater or upgrading a commercial multimedia system, the PI3HDMI1210-ABE offers the performance and quality you need to create an immersive audiovisual experience.
