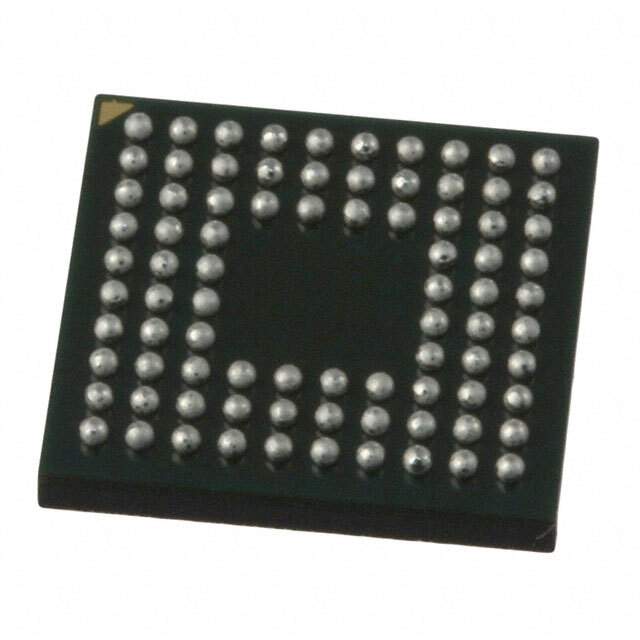

Diodes Incorporated PI2EQX3202BNBE Overview

The PI2EQX3202BNBE is a high-performance, 2-lane, 2-port USB 3.2 Gen 1 ReDriver from Diodes Incorporated, designed to enhance signal quality by performing receive equalization on the deteriorated input signal followed by transmit de-emphasis, maximizing system performance. It's an ideal solution for applications requiring longer cable reaches and better signal integrity for high-speed data transmission.

Key Features

• USB 3.2 Gen 1 Compatible: Supports data rates up to 5Gbps, making it suitable for high-speed data transfer applications.
• Automatic Equalization: The device provides automatic adaptive equalization to optimize performance over a variety of physical mediums by reducing inter-symbol interference.
• Programmable De-emphasis: Transmit signals can be programmatically de-emphasized to compensate for cable loss and to reduce bit error rate.
• Low Power Consumption: Designed for efficiency, the PI2EQX3202BNBE offers low power operation, which is critical for power-sensitive applications.
• Small Form Factor: The compact package size allows for easy integration into system designs without significantly impacting the overall footprint.

Applications

The PI2EQX3202BNBE is well-suited for a range of applications that require reliable high-speed data transmission. Common applications include:

• Desktop and Laptop Computers
• Smartphones and Tablets
• Docking Stations
• USB Hubs and Peripherals
• Data Storage Devices

Technical Specifications

With an operational temperature range of -40°C to +85°C, the PI2EQX3202BNBE maintains its performance across various environments. The device is compliant with USB 3.2 Gen 1 standards and backward compatible with USB 2.0 for versatile use with different USB generations.

Quality and Reliability

Diodes Incorporated is known for their commitment to quality, and the PI2EQX3202BNBE is no exception. It is manufactured to meet high standards of reliability and performance, ensuring that it meets the needs of demanding applications.

Whether upgrading existing systems or designing new ones, the PI2EQX3202BNBE from Diodes Incorporated provides an effective way to ensure signal integrity for USB 3.2 Gen 1 interfaces, making it a smart choice for designers looking to optimize their high-speed data solutions.
