Product Overview: PDS540-13D

The PDS540-13D is a high-performance, surface-mount Schottky Barrier Rectifier designed by Diodes Incorporated, a leading manufacturer in the semiconductor market. This rectifier is engineered to provide low forward voltage drop, high current capability, and superior switching performance, making it an ideal choice for a variety of applications, including power supply, converter, and high-frequency circuits.

Key Features

• High Current Capacity: The PDS540-13D is capable of conducting up to 5A of average rectified current, with a peak forward surge current of 150A, ensuring reliability in high-current applications.
• Low Forward Voltage Drop: With a forward voltage drop as low as 0.55V, this device ensures high efficiency in power conversion, which is critical for minimizing power losses in electronic circuits.
• Guard Ring Die Construction: The guard ring design provides enhanced ruggedness and long-term reliability, especially in the case of transient voltage spikes.

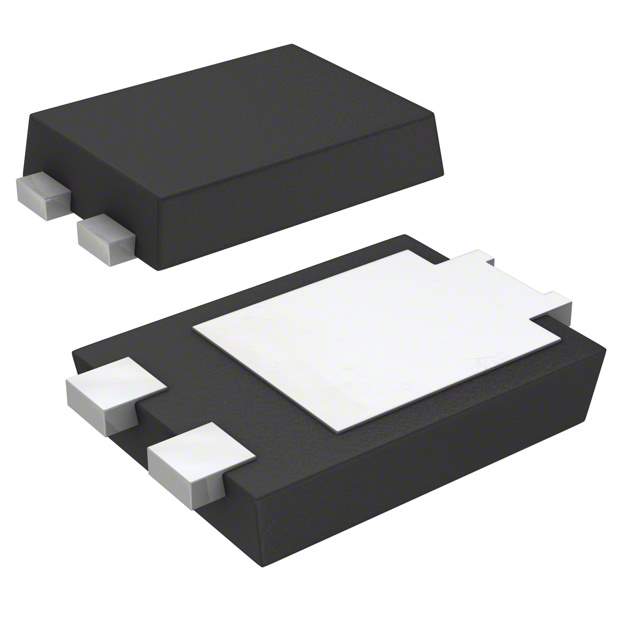

• Thermal Performance: The PDS540-13D comes in a PowerDI5 package that offers exceptional thermal resistance, allowing for better heat dissipation and stable performance even under high temperature operating conditions.
• RoHS Compliant: This product is compliant with RoHS standards, ensuring that it meets the latest environmental regulations regarding the restriction of hazardous substances.

Applications

The versatility of the PDS540-13D makes it suitable for a wide range of applications, including:

• Switching power supplies
• Converters
• Free-wheeling diodes
• Reverse battery protection
• DC-DC converters
• Automotive applications

Technical Specifications

The PDS540-13D boasts a maximum repetitive peak reverse voltage (VRRM) of 40V, with an operating junction temperature range from -55°C to +150°C. Its low forward voltage drop and high surge capability make it an efficient solution for high-speed switching applications.

For detailed technical specifications and application notes, customers are encouraged to consult the datasheet provided by Diodes Incorporated, which offers comprehensive information to ensure proper integration of the PDS540-13D into their electronic designs.
