Diodes Incorporated P6SMAJ5.0ADF-13 TVS Diode

Introducing the P6SMAJ5.0ADF-13, a state-of-the-art Transient Voltage Suppressor (TVS) diode brought to you by Diodes Incorporated, a leading manufacturer in the semiconductor industry. This robust TVS diode is designed to protect sensitive electronic equipment from voltage transients induced by system-induced surge events and electrostatic discharge (ESD). With its compact form factor and powerful surge protection capabilities, the P6SMAJ5.0ADF-13 is an ideal choice for a wide range of applications, including consumer electronics, automotive systems, and industrial equipment.

The P6SMAJ5.0ADF-13 TVS diode is capable of handling a peak pulse power dissipation of 600 Watts (@10/1000μs waveform), ensuring reliable protection against high-energy transients. Its standoff voltage is 5.0 volts, which makes it suitable for protecting 5V circuits. The diode's fast response time is essential for quick clamping of transient voltages, thereby safeguarding the downstream components from potential damage.

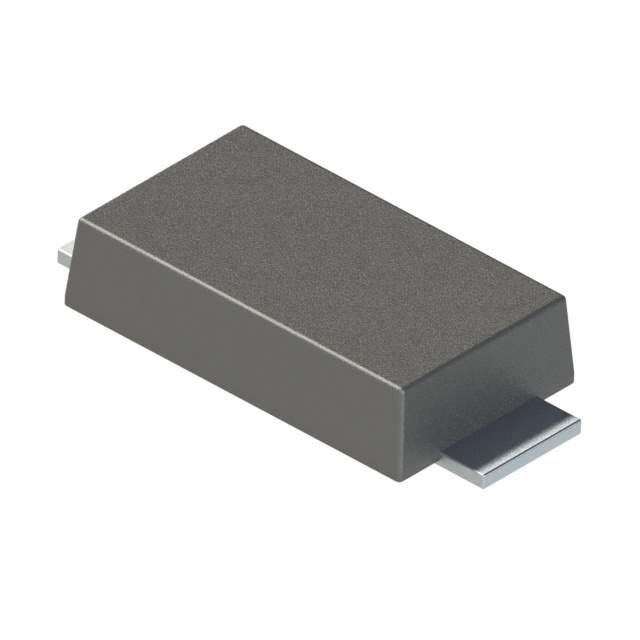

Constructed in a DO-214AC (SMA) package, the P6SMAJ5.0ADF-13 is not only durable but also space-efficient, allowing for easy integration into a variety of circuit designs. The device is also characterized by its low incremental surge resistance, which helps to minimize power loss and ensure efficient operation during a transient event.

Key features of the P6SMAJ5.0ADF-13 include:

• Peak Pulse Power Dissipation: 600W (@10/1000μs)
• Standoff Voltage: 5.0V
• Breakdown Voltage Range: 6.40V to 7.07V
• Maximum Clamping Voltage: 9.2V at 64.5A
• DO-214AC (SMA) package for compact footprint
• Low incremental surge resistance
• RoHS and REACH compliant

The P6SMAJ5.0ADF-13 is also environmentally friendly, complying with RoHS and REACH standards, which means it is free from hazardous substances and safe for use in a wide range of consumer and industrial products. With its robust design and reliable performance, the P6SMAJ5.0ADF-13 from Diodes Incorporated is an excellent choice for circuit designers looking to enhance the longevity and reliability of their electronic systems.

Whether you are working on power supply designs, communication systems, or any other application that requires surge protection, the P6SMAJ5.0ADF-13 TVS diode is an indispensable component that offers peace of mind through its exceptional performance and quality.
