Diodes Incorporated P6SMAJ10ADF-13 TVS Diode

The P6SMAJ10ADF-13 from Diodes Incorporated is a transient voltage suppressor (TVS) diode designed to provide high-quality surge and electrostatic discharge (ESD) protection for electronic devices. This component is specifically crafted to shield sensitive circuitry from voltage transients induced by system-level events such as load dump, lightning, and the switching of inductive loads.

With its robust construction, the P6SMAJ10ADF-13 TVS diode is capable of dissipating ESD strikes of ±30kV (air and contact discharge) as defined by the IEC 61000-4-2 international standard, ensuring the reliability and longevity of your electronic applications. This level of protection is essential for preserving the integrity of electronic equipment in today's increasingly demanding environments.

The device features a stand-off voltage of 10V, which is the maximum voltage that can be applied over the operating temperature range without causing excessive current flow. Its peak pulse power dissipation is an impressive 600W for a 10/1000μs waveform, allowing it to handle significant surge events without failure. The low incremental surge resistance and excellent clamping capability provide a swift and effective response to overvoltage events, minimizing the risk of damage to the protected component.

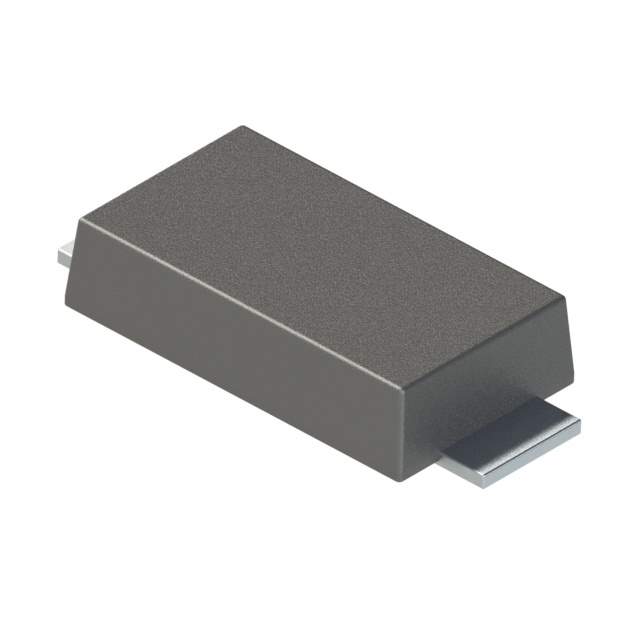

Moreover, the P6SMAJ10ADF-13 comes in a DO-214AC (SMA) package, which is known for its compact size and ease of PCB layout. This package is also well-suited for automated assembly processes, making it an ideal choice for high-volume production. The device is rated for operation over a wide temperature range from -55°C to +150°C, ensuring stable performance even under extreme conditions.

Whether it's automotive electronics, industrial systems, or consumer electronics, the P6SMAJ10ADF-13 TVS diode is an excellent choice for designers looking to enhance the durability and reliability of their circuits. With its powerful surge protection capabilities and robust design, this component from Diodes Incorporated stands as a safeguard, ensuring that sensitive electronics continue to operate smoothly in the face of unpredictable and potentially damaging voltage spikes.
