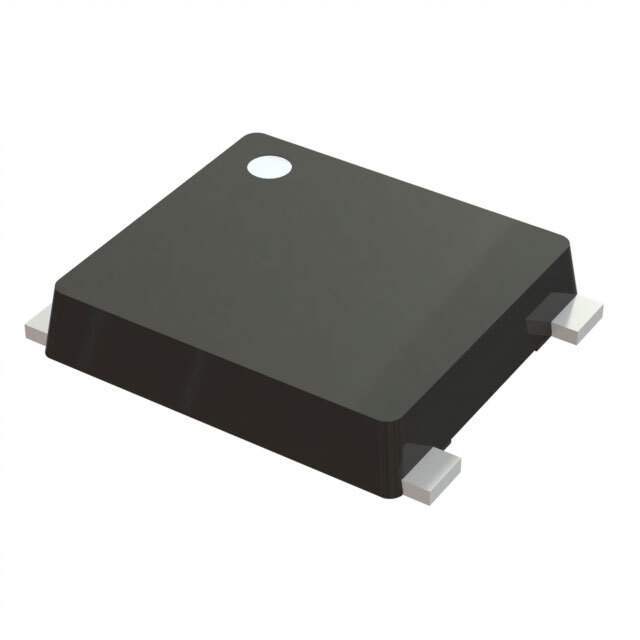

Same model may have multiple batches, images only for reference.
MRS30MDiodes Incorporated
Same model may have multiple batches, images only for reference.

MRS30M

Part No MRS30M
Manufacturer Diodes Incorporated
Catalog Bridge Rectifiers
Description RAPID GPP RECTIFIER MSB T&R 2.5K
Datasheet
MRS30M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Diodes Incorporated
Category Discrete Semiconductor Products Diodes Bridge Rectifiers
Part Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 3 A
Voltage - Forward (Vf) (Max) @ If 1.3 V @ 3 A
Current - Reverse Leakage @ Vr 5 µA @ 1000 V
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 4-SMD, Flat Leads
Win Source Part Number WS1309767-MRS30M
Ultra Librarian 3D Model Ultra Librarian MRS30M CAD Model

Description

Suitable for AC to DC bridge full wave rectification for SMPS, LED lighting, adapter, battery charger, home appliances, office equipment, and telecommunication applications.
