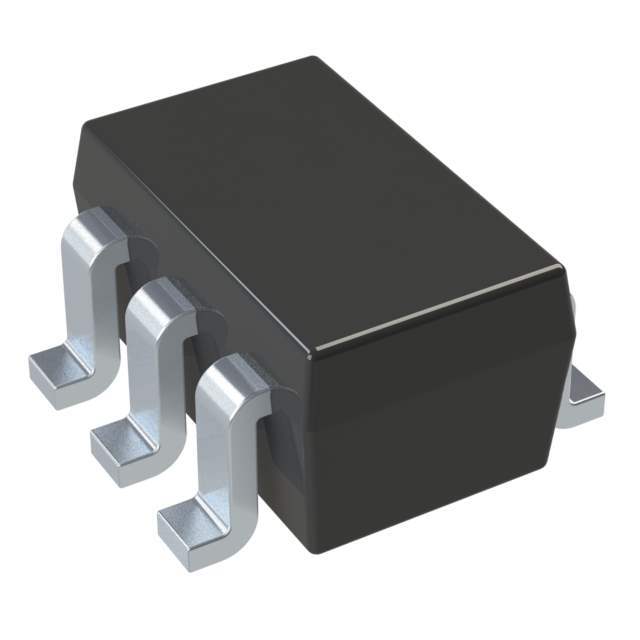

Same model may have multiple batches, images only for reference.
MMBD4448HADWQ-7-F Diodes Incorporated
Same model may have multiple batches, images only for reference.

MMBD4448HADWQ-7-F

Part No MMBD4448HADWQ-7-F
Manufacturer Diodes Incorporated
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 80V 500MA SOT363
Datasheet
MMBD4448HADWQ-7-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Diodes Incorporated
Category Discrete Semiconductor Products> Diodes >Rectifiers Diode Arrays
Part Status Active
Diode Configuration 2 Pair Common Anode
Technology Standard
Voltage - DC Reverse (Vr) (Max) 80 V
Current - Average Rectified (Io) (per Diode) 500mA (DC)
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 150 mA
Reverse Recovery Time (trr) 4 ns
Operating Temperature - Junction -65°C ~ 150°C
Mounting Type Surface Mount
Package / Case 6-TSSOP, SC-88, SOT-363
Supplier Device Package SOT-363
Win Source Part Number WS1310087-MMBD4448HADWQ-7-F
Ultra Librarian 3D Model Ultra Librarian MMBD4448HADWQ-7-F CAD Model

Description

Diode Array 2 Pair Common Anode 80 V 500mA (DC) Surface Mount 6-TSSOP, SC-88, SOT-363
