The KBJ401G is a high-quality bridge rectifier designed and manufactured by Diodes Incorporated, a leading company in the semiconductor market. This component is engineered to convert an alternating current (AC) input into a direct current (DC) output, which is a fundamental function in power supply applications.

Key Features

• High Current Rating: The KBJ401G is capable of handling a high average rectified forward current of 4A, making it suitable for a broad range of power applications.
• Peak Reverse Voltage: It features a peak reverse voltage (PRV) of up to 100V, providing ample protection against voltage spikes and surges in the circuit.
• Low Forward Voltage Drop: The device is designed with a low forward voltage drop to ensure higher efficiency and lower power losses during operation.
• Isolation Voltage: This bridge rectifier offers an excellent isolation voltage from case to leads, enhancing the overall safety and reliability of the application it is used in.

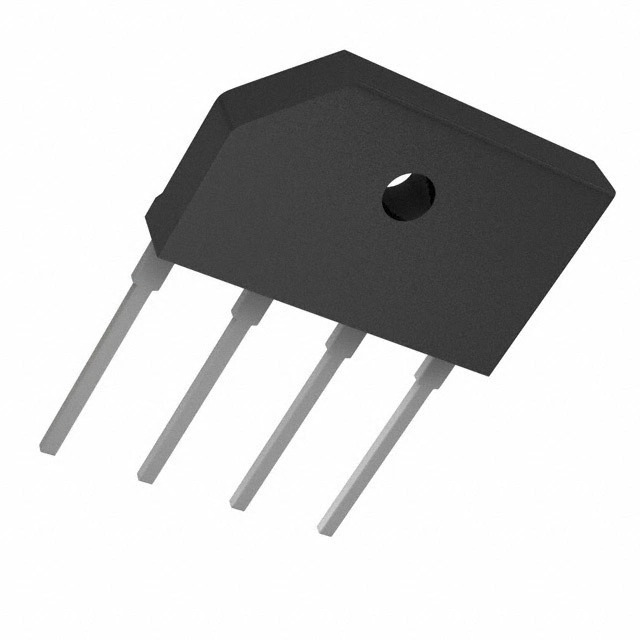

• Package: The KBJ401G comes in a KBJ package, which is known for its ease of mounting and solid construction, suitable for through-hole mounting on printed circuit boards (PCBs).

Applications

With its robust design and electrical characteristics, the KBJ401G is an ideal choice for a wide array of electronic applications, including:

• Power supplies
• Adapters
• On-board DC/DC converters
• Battery chargers
• Office equipment
• Home appliances
• Telecommunication devices

Quality and Reliability

Diodes Incorporated is committed to providing products that meet the highest standards of quality and reliability. The KBJ401G bridge rectifier is no exception, having undergone rigorous testing and quality control measures to ensure its performance in even the most demanding environments.

For detailed technical specifications, application notes, and support documentation, customers are encouraged to visit the Diodes Incorporated official website or contact their local sales representative.
