The DT1240-04LP-7 is a cutting-edge, low-capacitance TVS (Transient Voltage Suppressor) diode array designed and manufactured by Diodes Incorporated. This robust component is specifically engineered to provide superior protection for sensitive electronic equipment from electrostatic discharge (ESD) and other transient voltage events. It is an ideal solution for safeguarding high-speed data lines and I/O ports in a wide range of applications.

Key Features

• ESD Protection: The DT1240-04LP-7 offers excellent ESD protection, meeting IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) standards, ensuring the safety and longevity of your devices.
• Low Capacitance: With an ultra-low loading capacitance of just 0.8pF typical per I/O, this diode array is especially suitable for protecting high-speed signal lines without compromising signal integrity.
• Low Leakage Current: The device features a low leakage current of less than 0.5µA at the working voltage, contributing to the energy efficiency of the overall system.
• Array Configuration: This product comes in an array of four diodes, allowing for compact and efficient multi-line protection with a single component.

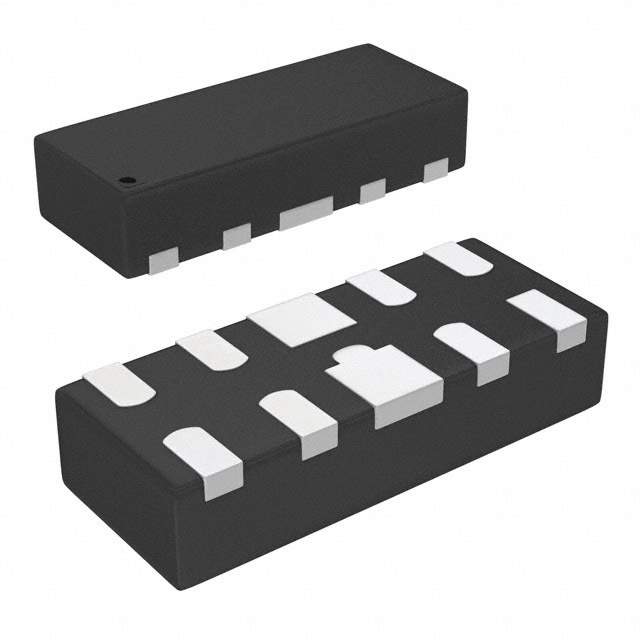

• Small Form Factor: The DT1240-04LP-7 is packaged in a small X1-DFN1006-2 (leadless), which is ideal for space-constrained applications.

Applications

The versatility of the DT1240-04LP-7 makes it suitable for a broad spectrum of applications. It is commonly used in the protection of USB interfaces, HDMI ports, and other high-speed data lines found in consumer electronics like smartphones, laptops, and televisions. Additionally, it is well-suited for industrial applications, telecommunications equipment, and portable electronics where reliable ESD protection is crucial.

Quality and Reliability

Diodes Incorporated is known for its commitment to quality and reliability, and the DT1240-04LP-7 is no exception. Each component is rigorously tested to ensure it meets the highest standards for performance and durability. Customers can trust this TVS diode array to provide consistent protection and maintain the integrity of their electronic systems.
