Introducing the D3V3Q1B2LP3-7 Transient Voltage Suppressor from Diodes Incorporated

The D3V3Q1B2LP3-7 is a cutting-edge transient voltage suppressor (TVS) diode designed by Diodes Incorporated, a leading manufacturer in the semiconductor market. This product is specifically engineered to protect sensitive electronic equipment from voltage transients induced by system inductance, lightning, and electrostatic discharge (ESD), ensuring the longevity and reliability of your devices.

Key Features

• Low Clamping Voltage: The D3V3Q1B2LP3-7 offers excellent clamping voltage performance, providing superior protection for sensitive circuits by limiting the voltage spikes to a safe threshold.
• Low Capacitance: With its low capacitance design, this TVS diode is ideal for high-speed data line applications, ensuring minimal signal degradation and preserving the integrity of data transmission.
• ESD Protection: It is capable of withstanding ESD events, offering an air discharge rating of ±15kV, contact discharge of ±8kV, and protecting against electrical transients as defined in IEC 61000-4-2.

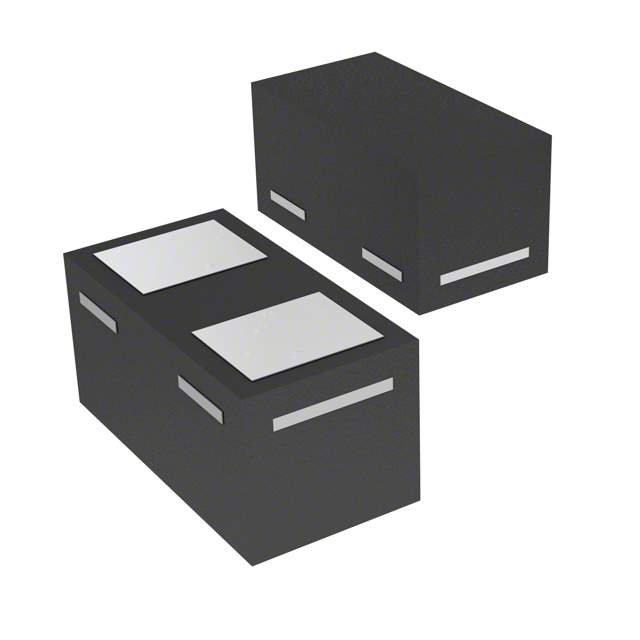

• Small Form Factor: The compact package size (DLP) of the D3V3Q1B2LP3-7 makes it suitable for space-constrained applications, allowing for efficient use of PCB real estate.
• RoHS Compliant: As an environmentally conscious product, it complies with the RoHS directive, making it suitable for use in a wide range of consumer and industrial markets that require lead-free components.

Applications

The versatility of the D3V3Q1B2LP3-7 makes it an ideal choice for a broad array of applications, including:

• Portable Electronics
• Power Supplies
• Computing Devices
• Communication Systems
• Industrial Controls

Technical Specifications

Here are some of the technical highlights of the D3V3Q1B2LP3-7:

• Reverse Stand-Off Voltage: 3.3V
• Peak Pulse Power Dissipation: 200W (8/20μs waveform)
• Operating Temperature Range: -55°C to +150°C
• Package: DLP
• Lead-Free and RoHS Compliant

The D3V3Q1B2LP3-7 from Diodes Incorporated represents a blend of performance, reliability, and compact design, making it a top choice for designers looking to enhance the durability and safety of their electronic systems. Trust in Diodes Incorporated for your circuit protection needs, and ensure your products are safeguarded against the unpredictable nature of transient voltage events.
