Introducing the D20V0S1U3LP20-7 from Diodes Incorporated

Diodes Incorporated presents the D20V0S1U3LP20-7, a robust and reliable transient voltage suppressor (TVS) diode, designed to protect sensitive electronic equipment from voltage transients induced by system-level electrostatic discharge (ESD) and other transient voltage events. This product is a perfect solution for safeguarding high-speed data lines and other vulnerable circuits used in a wide range of applications, including mobile handsets, portable electronics, and communication systems.

Key Features

• Stand-off Voltage: The D20V0S1U3LP20-7 offers a stand-off voltage of 20V, providing a solid barrier against overvoltage conditions that could otherwise damage sensitive components.
• Low Capacitance: With its low loading capacitance, this TVS diode is ideal for protecting high-speed data lines without compromising signal integrity.
• ESD Protection: It is capable of withstanding ESD strikes at ±30kV (air and contact discharge) as per the IEC 61000-4-2 standard, ensuring the durability and long-term reliability of your electronic devices.

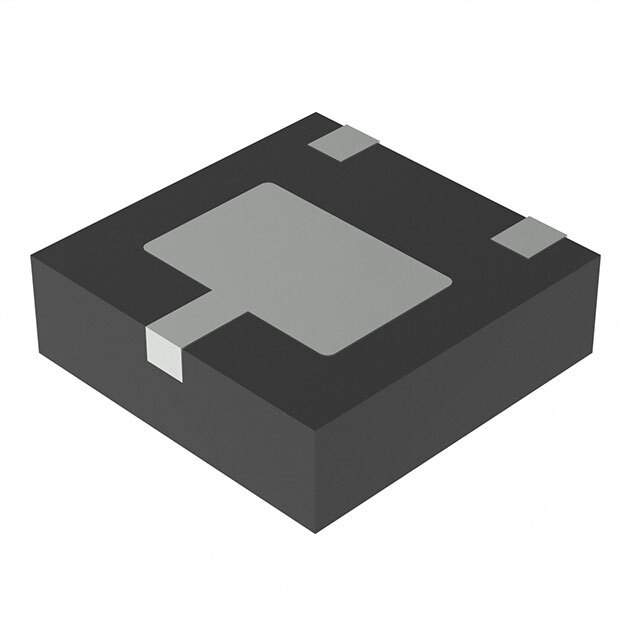

• Ultra-Small Package: The D20V0S1U3LP20-7 comes in an ultra-small DFN1006-2 package, making it an excellent choice for space-constrained applications.
• Lead-Free and RoHS Compliant: In line with modern environmental standards, this product is completely lead-free and RoHS compliant, minimizing the ecological impact of your electronics.

Applications

The D20V0S1U3LP20-7 is versatile and can be used in a variety of applications where ESD protection is critical. It is particularly suited for:

• USB interfaces
• HDMI ports
• Portable devices
• Smartphones and tablets
• Wearable technology
• High-speed data lines requiring minimal signal attenuation

Quality and Reliability

Diodes Incorporated is committed to providing high-quality products. The D20V0S1U3LP20-7 TVS diode is produced with rigorous quality control processes, ensuring that each component meets the highest standards of performance and reliability. When you choose Diodes Incorporated for your circuit protection needs, you can be confident that you are getting a product that will serve your application reliably for years to come.

For detailed specifications and application notes, please refer to the official datasheet of the D20V0S1U3LP20-7, available on the Diodes Incorporated website.
