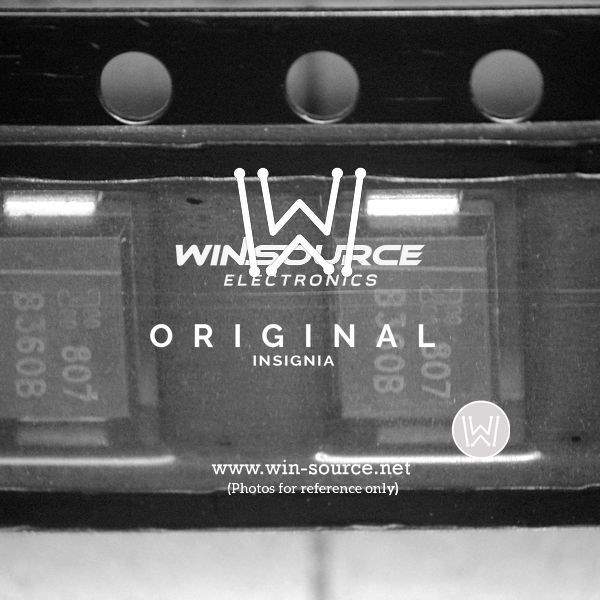

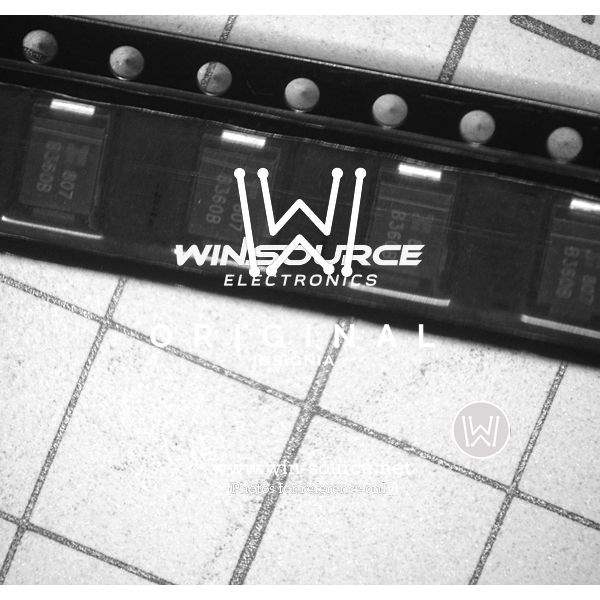

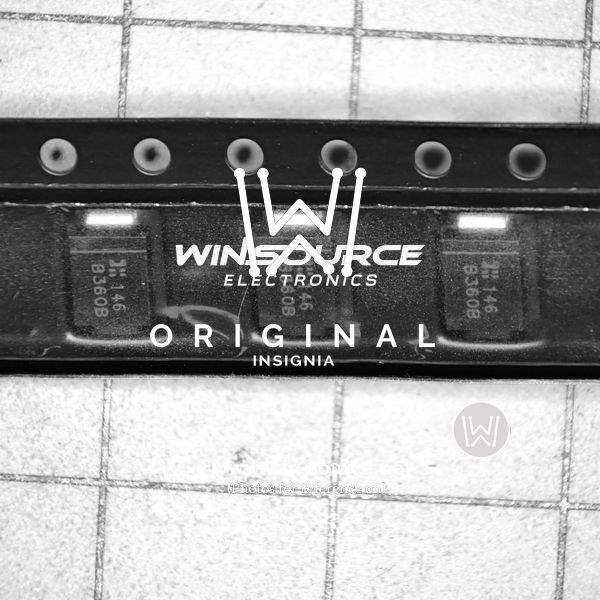

Product Overview: Diodes Incorporated B360B-13-F

The B360B-13-F is a robust Schottky barrier rectifier designed by Diodes Incorporated, a leading manufacturer in the semiconductor market. This component is engineered to offer efficient low voltage drop and high current capability, making it an ideal choice for a wide range of applications where power efficiency is crucial.

Key Features

• High Current Capability: With a maximum average rectified current of 3A, the B360B-13-F is capable of handling high current demands, ensuring reliable performance in power-intensive applications.
• Low Forward Voltage Drop: The device exhibits a low forward voltage drop, which enhances system efficiency by minimizing power loss during operation.
• High Surge Capability: It is designed to withstand high surge currents, providing robust protection against sudden voltage spikes and enhancing the durability of the end application.
• Power and Space Efficiency: The B360B-13-F comes in a compact SMB package, which is not only space-saving but also offers excellent power density for its size.
• RoHS Compliant: This product is compliant with RoHS standards, ensuring that it meets the environmental and safety regulations by restricting the use of certain hazardous substances.

Applications

The B360B-13-F is versatile and can be integrated into various electronic circuits. It is particularly well-suited for:

• Low voltage, high frequency inverters
• Free-wheeling diodes
• DC/DC converters
• Power supply applications
• Reverse battery protection circuits
• Automotive applications

Specifications

The B360B-13-F operates with a repetitive peak reverse voltage of 60V and has a forward continuous current of 3A. It features a maximum forward voltage of 0.71V at 3A, and its maximum reverse current at rated DC blocking voltage is 200μA. The operating junction temperature range for this device is between -55°C to +150°C, ensuring reliable operation across a wide range of environmental conditions.

With its combination of high efficiency, durability, and versatility, the B360B-13-F from Diodes Incorporated stands out as a solid choice for designers looking to enhance the performance and reliability of their power management systems.
