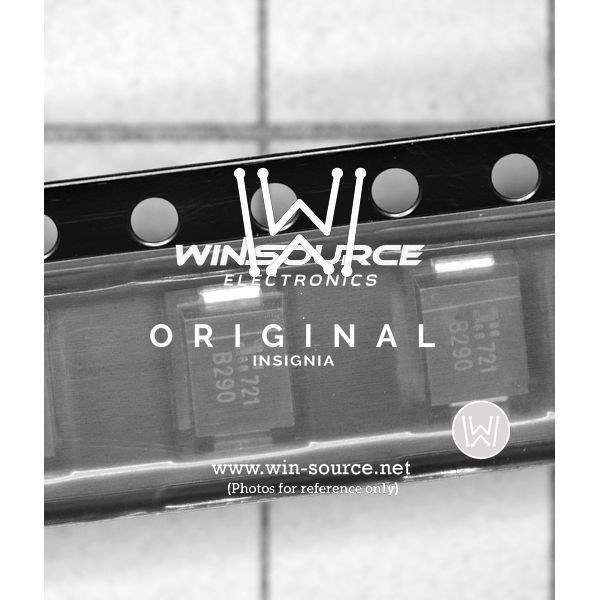

Diodes Incorporated presents the B290-13-F, a robust and efficient Schottky barrier rectifier designed to fulfill a wide array of requirements in various electronic applications. This rectifier is well-suited for use in low-voltage, high-frequency inverters, free-wheeling, and polarity protection applications. The B290-13-F is a testament to Diodes Incorporated's commitment to providing high-quality components that meet the evolving needs of the electronics industry.

Key Features

• Low Forward Voltage Drop: The B290-13-F features a low forward voltage drop, which enhances system efficiency and reduces thermal issues, making it ideal for high-efficiency power supplies.
• High Current Capability: With its ability to handle high currents, this rectifier is perfect for power regulation in demanding applications.
• Low Power Loss: The high efficiency of the B290-13-F translates into lower power loss, ensuring reliable operation and longevity of the device.
• Robust Construction: Encased in a durable package, this product offers superior reliability and performance even in challenging environmental conditions.

Electrical Characteristics

The B290-13-F operates with a maximum repetitive reverse voltage of 90V and has a maximum average forward rectified current of 2A at TL (lead temperature) of 90°C. Its forward voltage is 0.71V at 2A, and it has a maximum reverse current of 500mA at 25°C, which shows its efficiency in blocking current leakage.

Applications

The versatile nature of the B290-13-F makes it suitable for various applications, including:

• Switching power supplies
• Converters
• Free-wheeling diodes
• Reverse battery protection
• DC-DC converters
• Power management devices

Quality and Environmental Compliance

Diodes Incorporated ensures that the B290-13-F complies with the RoHS directive, highlighting the company's commitment to environmental sustainability. The device is manufactured with a "Green" molding compound as per EU Directive 2011/65/EU and is qualified to AEC-Q101 standards for automotive applications, ensuring high reliability and performance under extreme conditions.
