The AP5725FDCG-7 is a high-performance, low-power LED driver IC manufactured by Diodes Incorporated, a leading global manufacturer and supplier of high-quality application-specific standard products within the broad discrete, logic, analog, and mixed-signal semiconductor markets. This particular product is designed to provide a simple and efficient solution for driving single or multiple series-connected LEDs in various lighting applications.

Key Features

• Adjustable Output Current: The output current of the AP5725FDCG-7 can be adjusted through an external resistor, providing flexibility in controlling the brightness of the LEDs.
• High Efficiency: With an integrated switch, the device is capable of delivering high efficiency, which is critical for battery-operated and power-sensitive applications.
• Thermal Protection: The built-in thermal shutdown function ensures the device operates within safe temperature limits, enhancing the reliability and longevity of the product.
• Low Shutdown Current: The AP5725FDCG-7 has a very low shutdown current, which minimizes power consumption when the LED driver is not in use.

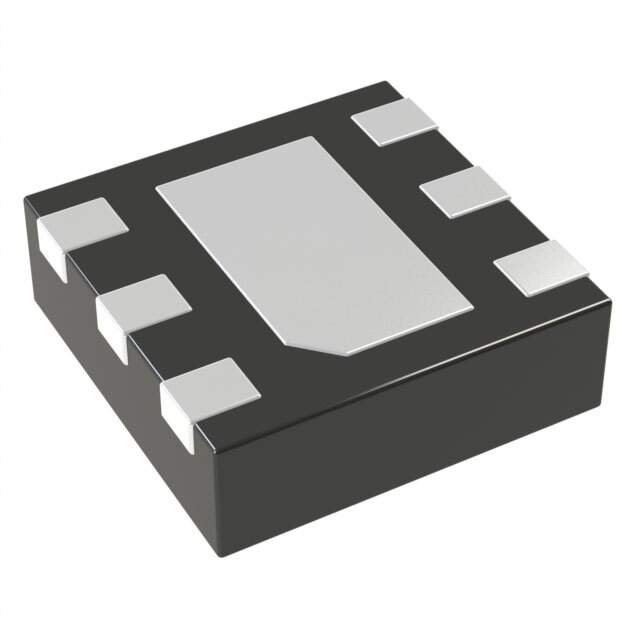

• Small Package Size: The device comes in a compact 2.0mm x 1.25mm DFN2020-6 package, making it suitable for space-constrained applications.

Applications

The versatility of the AP5725FDCG-7 allows it to be used in a wide range of applications, including:

• Portable and battery-powered equipment
• Backlighting for LCD displays
• General LED lighting
• Automotive lighting
• Signage and decorative LED lighting

Quality and Reliability

Diodes Incorporated is committed to providing products that meet the highest standards of quality and reliability. The AP5725FDCG-7 is no exception, as it is designed and manufactured to withstand the rigors of everyday use in commercial and industrial environments. Customers can trust this LED driver to deliver consistent performance and extend the life of their LED lighting solutions.
