Product Overview: AP22652FDZ-7 from Diodes Incorporated

The AP22652FDZ-7 is a high-performance, single-channel load switch developed by Diodes Incorporated, a leading manufacturer and supplier of high-quality semiconductor products. This load switch is designed to deliver efficient power distribution and management for a wide range of applications, including consumer electronics, portable devices, and industrial systems.

Key Features

• Input Voltage Range: The device supports a wide input voltage range from 0.8V to 5.5V, making it suitable for various low-voltage applications.
• Low On-Resistance: With an ultra-low on-resistance of just 28mΩ at 5V, the AP22652FDZ-7 ensures minimal voltage drop and power loss, thereby improving efficiency.
• High Current Capability: It can handle continuous output currents up to 2A, which is ideal for handling high-power loads.
• Fast Switching: The load switch features fast turn-on and turn-off times, providing quick response to power demands and contributing to overall system performance.
• Controlled Slew Rate: The AP22652FDZ-7 incorporates a controlled slew rate to minimize inrush current, which can be critical in preventing system voltage droop and protecting downstream circuitry.
• Built-in Current Limit: The device includes a current-limiting feature to protect the power source and load from overcurrent conditions.
• Thermal Shutdown Protection: An integrated thermal shutdown function ensures the device operates within safe temperature limits, enhancing system reliability.
• Low Quiescent Current: The ultra-low quiescent current of the AP22652FDZ-7 is ideal for battery-powered applications, where power conservation is paramount.

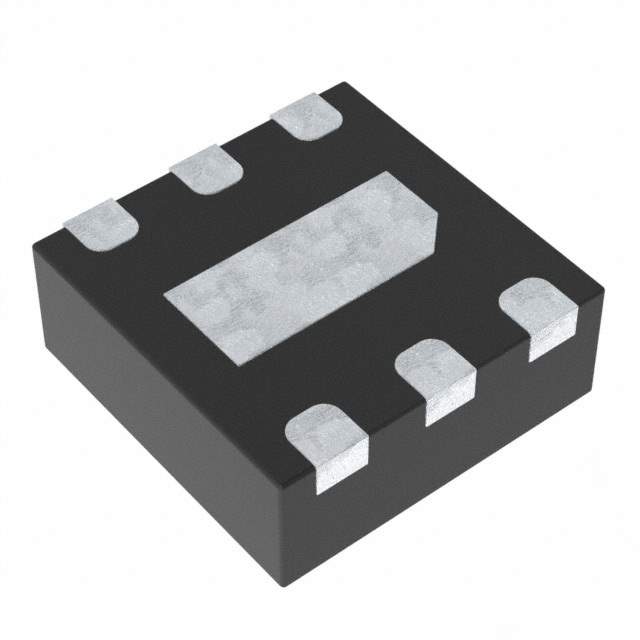

• Small Package: The switch is available in a small X-WLB0707-6 package, which is space-saving and suitable for compact PCB layouts.

Applications

The AP22652FDZ-7 is versatile and can be used in a variety of applications. Its high-efficiency and power management capabilities make it suitable for:

• Smartphones and tablets
• Portable media players
• Wireless and IoT devices
• Power supply distribution systems
• Industrial controls and automation

With its combination of features, the AP22652FDZ-7 from Diodes Incorporated is an excellent choice for designers looking to optimize power efficiency and reliability in their electronic systems.
