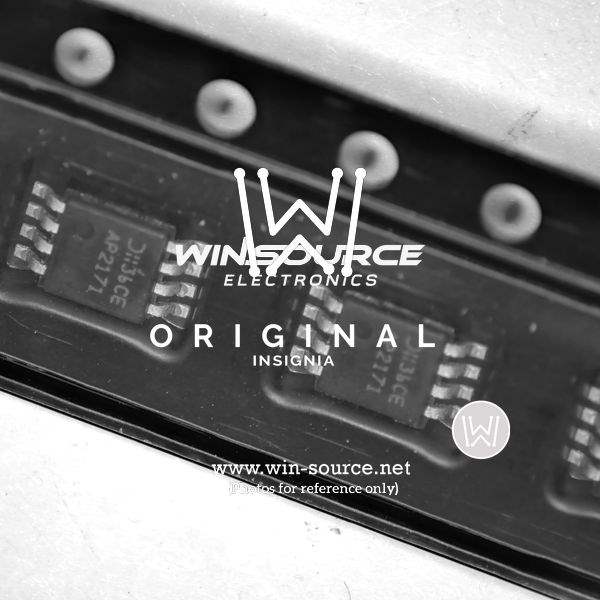

Product Overview: AP2171MPG-13

The AP2171MPG-13 is a high-quality, single-channel current-limited integrated high-side power switch, designed and manufactured by Diodes Incorporated. This power switch is optimized for Universal Serial Bus (USB) and other hot-swap applications. It is a part of the AP2171 series, which is known for its reliability and efficiency in power management solutions.

Key Features

• Current Limiting: The device offers programmable current limiting to protect the USB port from overcurrent conditions, which is essential for preventing damage to connected devices.
• Fast Response Time: With a quick response time to fault conditions, the AP2171MPG-13 ensures that devices are protected promptly, enhancing overall system safety.
• Thermal Shutdown Protection: The built-in thermal shutdown feature prevents overheating, thus ensuring the longevity of both the power switch and the system it is protecting.
• Wide Operating Voltage Range: It operates across a wide voltage range, making it suitable for various USB applications.
• Controlled Rise Time: The AP2171MPG-13 also offers a controlled rise time, reducing the likelihood of voltage spikes that could potentially harm other components.
• Reverse Current Blocking: This safety feature prevents current from flowing backward through the switch, further protecting the circuit.

Applications

The AP2171MPG-13 is primarily used in USB power distribution and peripheral applications. Its robust design makes it ideal for:

• USB hubs, docking stations, and monitors
• Portable devices with USB interfaces
• Hot-swap power supplies
• Battery-charger circuits

Package and Quality

Packaged in a green-compliant SOT-25 package, the AP2171MPG-13 is not only compact but also environmentally friendly. Diodes Incorporated ensures that this product meets the highest quality standards, with rigorous testing to guarantee performance and reliability in a range of conditions.
