The AL8863SP-13 is a high-performance, step-down DC/DC converter designed by Diodes Incorporated, a leading manufacturer in the semiconductor market. This compact and efficient power solution is ideal for driving single or multiple series-connected LEDs within a wide range of lighting applications.

Key Features

• Wide Input Voltage Range: The AL8863SP-13 operates from an input voltage range of 5V to 55V, making it versatile for various applications, from industrial lighting to automotive systems.
• Integrated 40V/0.2Ω Power MOSFET: Its built-in power MOSFET ensures high efficiency and reliability, reducing the need for external components and simplifying the design process.
• Adjustable Output Current: The output current can be programmed via an external resistor, giving designers the flexibility to tailor the output for specific LED configurations.
• High Efficiency: With up to 97% efficiency, the AL8863SP-13 minimizes power loss and heat generation, enhancing the overall performance and longevity of the lighting system.
• Dimming Capability: It supports both analog and PWM dimming control methods, offering precise brightness control to accommodate different user preferences and applications.
• Thermal Protection: The device includes thermal shutdown protection to prevent damage from overheating, ensuring safe operation under varying conditions.

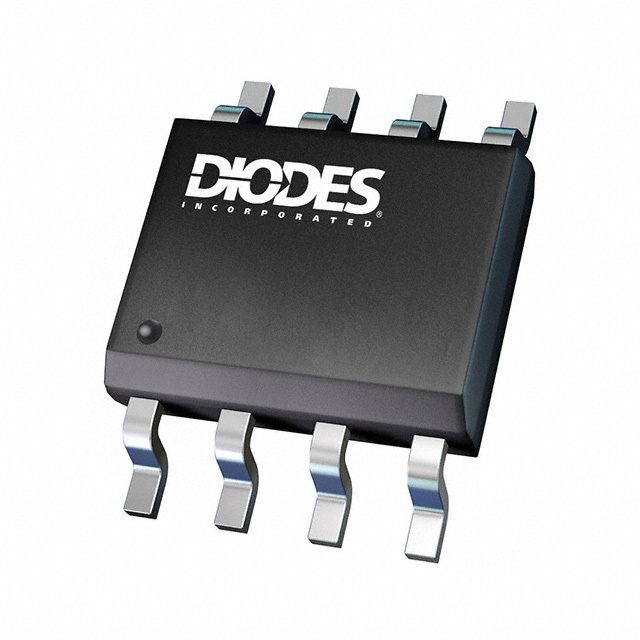

• Compact Package: Available in a small-footprint SO-8EP package, the AL8863SP-13 saves valuable board space and is suitable for compact system designs.

Applications

The AL8863SP-13's robust feature set makes it an excellent choice for a range of lighting applications, including:

• Architectural Lighting
• Commercial and Industrial Lighting
• Automotive and Marine Lighting
• General Purpose LED Illumination

Conclusion

With its wide input voltage range, high efficiency, and versatile dimming options, the AL8863SP-13 from Diodes Incorporated stands out as a powerful and reliable solution for LED lighting designers looking to optimize their systems for performance and cost. The inclusion of safety features like thermal protection further underscores its suitability for a wide array of demanding lighting applications.
