The AL8806MP8-13 is a high-efficiency, step-down DC/DC converter designed and manufactured by Diodes Incorporated. This compact and robust device is specifically engineered to drive high-brightness LEDs with a constant current, making it an ideal choice for a wide array of lighting applications.

Key Features

• High Efficiency: The AL8806MP8-13 operates with up to 96% efficiency, ensuring minimal power loss and heat generation, which is crucial for maintaining the longevity and reliability of both the driver and the LEDs it controls.
• Constant Current Output: It provides a stable and precise output current that can be set with one external resistor, allowing for consistent light output and color uniformity across different LEDs.
• Wide Input Voltage Range: Designed to accommodate a broad range of input voltages from 6V to 36V, making it versatile for use in various power supply scenarios.
• Adjustable Output Current: The output current can be adjusted up to 1.5A, catering to a diverse range of high-power LED requirements.
• Simple Dimming Control: Includes both analog and PWM dimming capabilities, offering flexibility in light intensity control for dynamic lighting effects or power saving purposes.
• Thermal Protection: Built-in thermal shutdown function protects the device from overheating, ensuring safe operation under high power conditions or high ambient temperature environments.

Applications

The AL8806MP8-13 is suitable for a variety of LED lighting solutions, including:

• Architectural and decorative lighting
• General illumination
• Automotive lighting
• Industrial and commercial lighting systems

Package and Quality Assurance

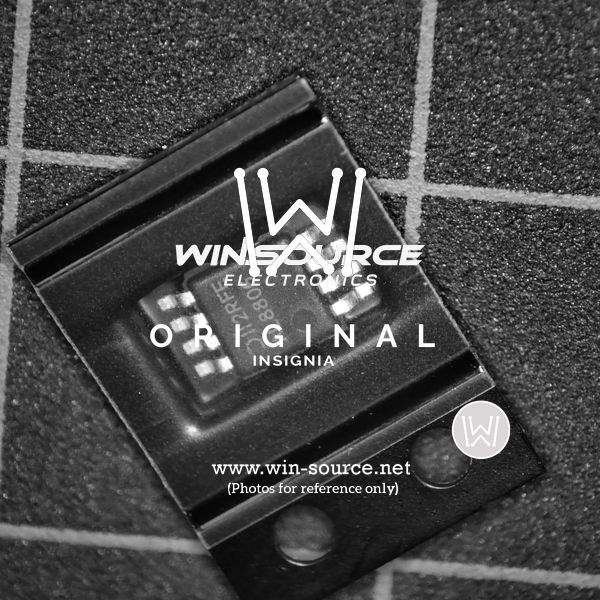

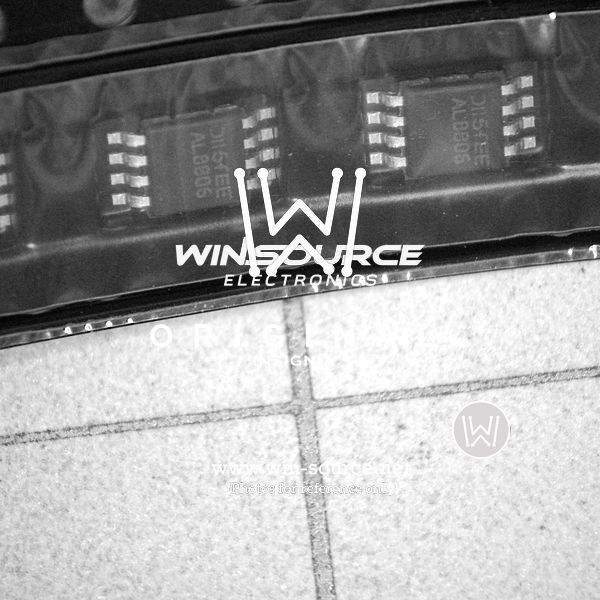

This product is offered in a compact 8-pin MSOP package, which is RoHS compliant and designed for easy integration into a wide range of lighting fixtures. Diodes Incorporated ensures that each AL8806MP8-13 meets rigorous quality standards, providing reliable and consistent performance for your lighting needs.
