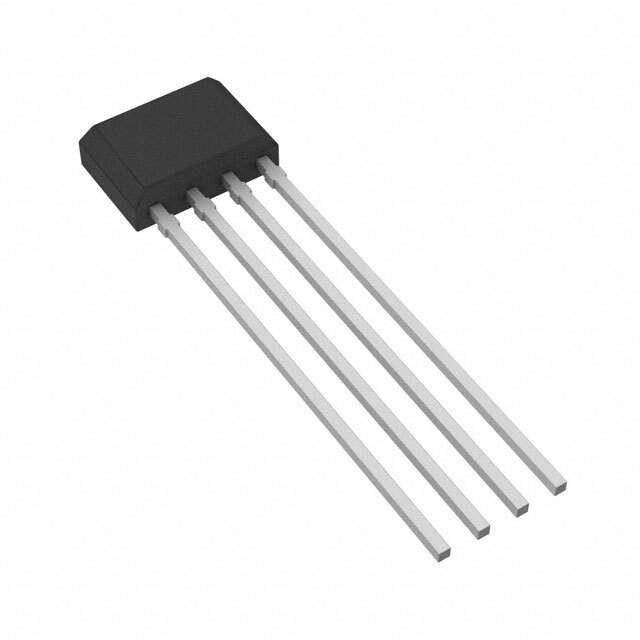

The AH276Z4-AG1 is a high-performance, versatile Hall Effect sensor designed and manufactured by Diodes Incorporated. This sensor is tailored for industrial and consumer applications that require accurate and reliable magnetic field detection.

Key Features

• High Sensitivity: The AH276Z4-AG1 has been engineered to detect even slight changes in magnetic fields, making it perfect for precision applications.
• Wide Voltage Range: It operates over a supply voltage range of 3V to 28V, allowing for flexibility in various power environments.
• Low Power Consumption: This sensor is optimized for energy efficiency, which is crucial for battery-powered devices.
• Chopper-Stabilized Amplifier: The built-in chopper-stabilized amplifier minimizes electrical noise, ensuring clean and stable output signals.
• Temperature Range: With an operating temperature range of -40°C to 85°C, the AH276Z4-AG1 is suitable for harsh environments.
• Output Type: It offers a digital output that easily interfaces with microcontrollers and other digital systems.

Applications

The AH276Z4-AG1's robustness and precision make it ideal for a wide range of applications, including:

• Position and proximity sensing
• Speed detection in motors and fans
• Flow meters
• Brushless DC motor commutation
• Angular and linear encoders

Quality and Reliability

Diodes Incorporated is committed to delivering high-quality products. The AH276Z4-AG1 is no exception and has undergone rigorous testing to ensure it meets industry standards for reliability and performance.

Product Specifications

For more detailed specifications, application notes, and support documentation, please visit the Diodes Incorporated website or contact their support team.
