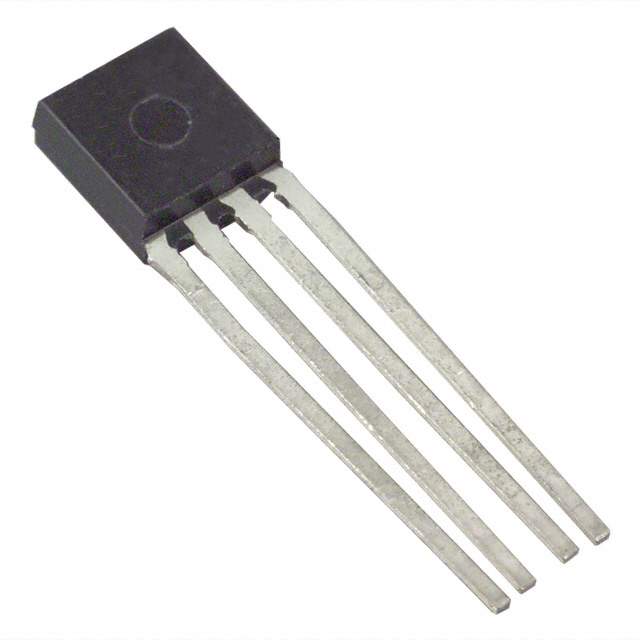

The AH276Q-PG-B-A is a high-performance Hall Effect Latch produced by Diodes Incorporated, a leading global manufacturer and supplier of high-quality application-specific standard products within the broad discrete, logic, analog, and mixed-signal semiconductor markets. This product is designed to cater to the needs of a wide array of applications, particularly in the automotive and industrial sectors, where reliable and precise position and speed sensing are critical.

Key Features

• High Sensitivity: The AH276Q-PG-B-A is equipped with a highly sensitive Hall Effect sensor, capable of detecting the presence of a magnetic field with great accuracy.
• Temperature Range: This device operates over a wide temperature range, making it suitable for harsh environments and ensuring consistent performance under varying conditions.
• Output Type: It offers a digital output with a latch-type response, providing a stable output state that changes only when a sufficient magnetic field is applied.
• Reverse Voltage Protection: The built-in reverse voltage protection feature helps to prevent damage to the device if the power supply is connected incorrectly.
• Robust Design: The AH276Q-PG-B-A is designed to withstand the rigors of industrial applications, ensuring a long operational life and reliability.

Applications

The versatility of the AH276Q-PG-B-A Hall Effect Latch makes it an ideal choice for a variety of applications, including:

• Brushless DC motor commutation
• Rotary encoding
• Speed and position sensing
• Proximity detection
• Flow meters

Technical Specifications

For those seeking a reliable and durable Hall Effect Latch, the AH276Q-PG-B-A from Diodes Incorporated offers the perfect blend of performance, durability, and versatility. Its robust design and precise sensing capabilities make it a go-to component for engineers and designers working on advanced sensing solutions.
