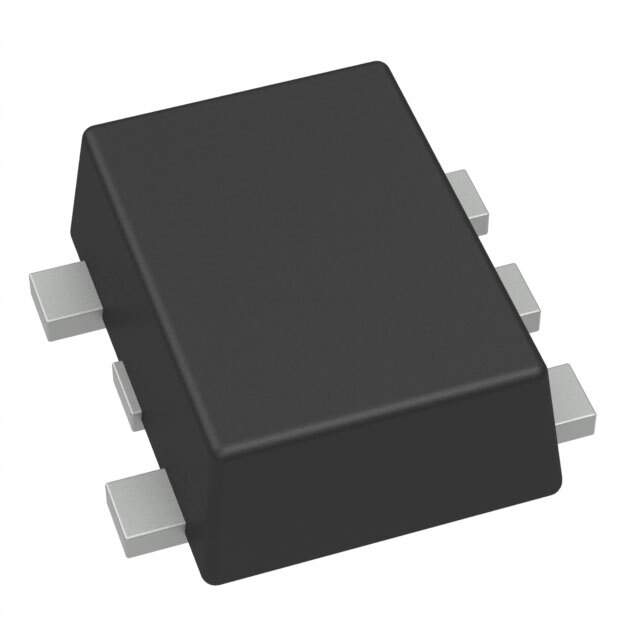

The AH1894-Z-7 is a high-performance, ultra-sensitive micropower omnipolar Hall effect switch IC, designed and manufactured by Diodes Incorporated. This advanced sensor is engineered to detect magnetic fields with exceptional precision, making it an ideal component for a wide range of applications that require accurate position or speed sensing.

Key Features

• Ultra-Low Power Consumption: The AH1894-Z-7 is optimized for battery-powered and portable applications, with a supply current as low as 24μA, which helps to extend the battery life of the end product.
• High Sensitivity: Engineered to detect both north and south poles, this omnipolar device can sense magnetic fields from a wide range of magnet types without the need for polarity distinction.
• Chopper Stabilized Design: This feature ensures stable operation over a wide temperature range and minimizes the switch point drift, thus providing reliable and consistent performance.
• Robust Output: The open-drain output of the AH1894-Z-7 can be easily interfaced with a variety of digital circuits, providing versatility in design integration.

Applications

The AH1894-Z-7 is suitable for a multitude of applications, including but not limited to:

• Portable electronic devices
• Domestic appliances
• Industrial equipment
• Power tools
• Consumer electronics

Specifications

With its compact SC-59 package, the AH1894-Z-7 is designed for space-constrained applications, offering a high level of integration without compromising performance. Diodes Incorporated's commitment to quality ensures that this Hall effect switch IC delivers both reliability and efficiency, making it a top choice for designers and engineers in the industry.
