The AH1806-Z-7 is a high-performance, micropower Omnipolar Hall Effect switch IC fabricated by Diodes Incorporated. This advanced sensor is designed to detect the presence of magnetic fields and provide a digital output with a high level of accuracy and reliability. The AH1806-Z-7 is particularly suitable for a wide range of applications, including but not limited to, position sensing, proximity detection, and speed measurement in various consumer, industrial, and automotive products.

Key Features

• High Sensitivity: The device is capable of detecting both north and south poles, making it versatile for different types of magnetic field sensing applications.
• Low Power Consumption: It operates with a very low supply current, which is ideal for battery-powered applications where power efficiency is crucial.
• Supply Voltage Range: The AH1806-Z-7 supports a wide voltage range, typically between 2.5V to 5.5V, accommodating various system design requirements.
• Chopper Stabilized Design: This feature ensures minimal temperature drift, enhancing the sensor's stability and performance across a broad temperature range.
• High Output Current: The device can sink a high output current, which can directly drive a load or an LED without requiring an external transistor.

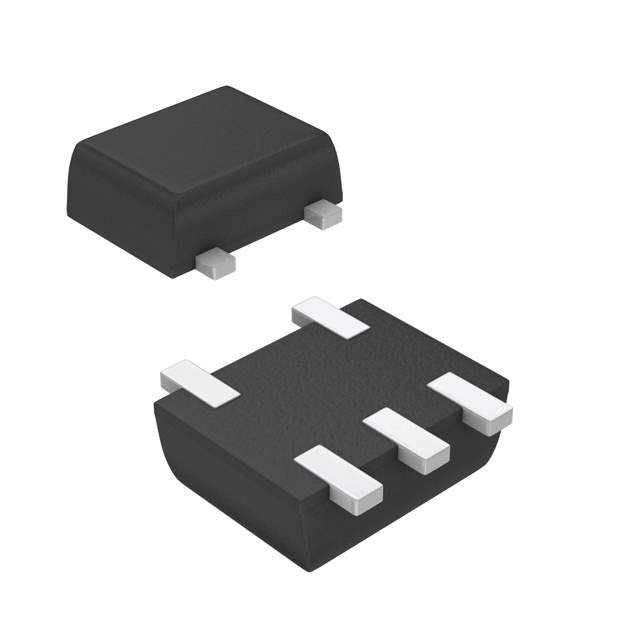

• Robust Package: Housed in a small and lead-free (RoHS compliant) package, the AH1806-Z-7 is designed for space-constrained applications and meets environmental standards.

Applications

• Portable and battery-powered devices
• Smart home appliances
• Industrial equipment
• Automotive systems
• Consumer electronics

With its omnipolar operation, low power requirements, and high sensitivity, the AH1806-Z-7 from Diodes Incorporated stands out as an excellent choice for designers looking to incorporate reliable magnetic field detection into their systems. Its compact form factor and ease of integration make it an attractive option for a multitude of applications that require precise and efficient sensing solutions.
