Diodes Incorporated 74AUP2G02RA3-7 Logic Gate

The 74AUP2G02RA3-7 from Diodes Incorporated is a high-performance, dual-input NOR gate that combines advanced silicon-gate CMOS technology with a robust design to provide users with a reliable and efficient logic solution. This component is part of the 74AUP family, which is known for its ultra-low power consumption, making it an ideal choice for battery-operated and power-sensitive applications.

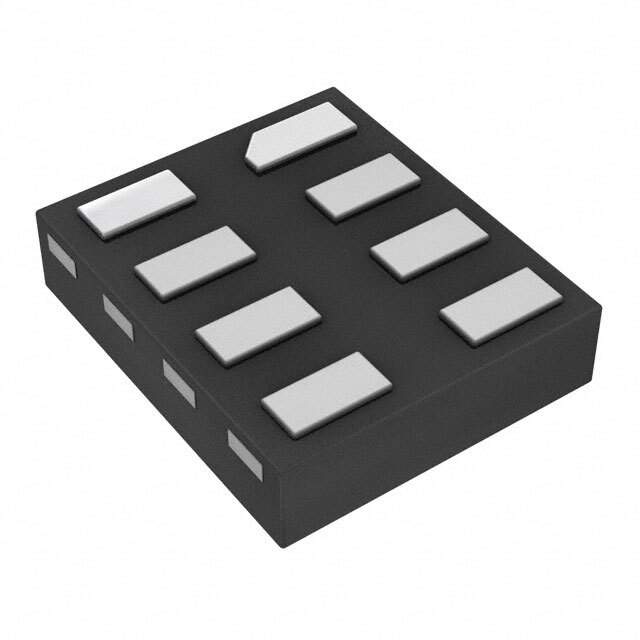

With its ultra-small and leadless DFN1410-6 (SOT1202) package, the 74AUP2G02RA3-7 is designed to occupy minimal space on a PCB, making it perfect for compact electronic devices. This package is not only space-efficient but also offers excellent thermal performance, ensuring the device operates within its specified temperature range.

The logic gate operates over a wide voltage range of 0.8V to 3.6V, allowing it to be used in various systems with different power levels. This flexibility makes it highly compatible with modern microprocessors and microcontrollers that operate at lower voltage levels for power conservation.

Additionally, the 74AUP2G02RA3-7 features Schmitt-trigger inputs, which provide hysteresis to enhance noise immunity and prevent unwanted switching due to noisy input signals. This characteristic is particularly beneficial in environments prone to electrical noise, ensuring stable and predictable logic behavior.

The device also boasts an extremely low static power consumption of only 0.9 μA max, contributing to the overall energy efficiency of the systems it is integrated into. Furthermore, the 74AUP2G02RA3-7 supports high-speed operation, with a typical tpd of 3.5 ns, enabling fast signal processing that is essential for high-performance computing and communication applications.

Its ESD protection exceeds JESD 22, ensuring that the device is safeguarded against electrostatic discharges during handling and operation, which enhances its durability and reliability. The 74AUP2G02RA3-7 is fully specified for partial power-down applications using IOFF, which ensures that the input circuitry does not cause additional power consumption when the device is powered down.

In summary, the 74AUP2G02RA3-7 NOR gate from Diodes Incorporated is a versatile, high-efficiency logic component that offers a compact footprint, low power consumption, and robust noise immunity, making it a valuable addition to a wide range of electronic systems.
