The 74AUP1G125FX4-7 is a high-performance, single-bit non-inverting buffer/line driver with 3-state output from Diodes Incorporated. This integrated circuit (IC) is designed for low-voltage operation, making it suitable for use in advanced portable and battery-powered systems. With its ultra-low-power consumption and high-speed operation, it is an ideal choice for interfacing and buffering applications in a wide range of electronic devices.

Key Features

• Low Static Power Consumption: The 74AUP1G125FX4-7 has a very low static power consumption (ICC) of only 0.9 µA max, which is beneficial for power-sensitive designs.
• Low Dynamic Power Consumption: At VCC = 3.3V and TA = 25°C, the dynamic power consumption is only 3.9 µA/MHz, making it an energy-efficient choice for high-speed applications.
• Wide Operating Voltage Range: The device can operate over a wide voltage range of 0.8V to 3.6V, providing flexibility for use in various system voltage levels.
• High-Speed Operation: The 74AUP1G125FX4-7 supports high-speed operation, with a typical tPD of 3.5 ns at VCC = 3.3V, ensuring quick response times for critical applications.
• 3-State Output: The inclusion of a 3-state output allows for connection to a bus or multiple outputs without the risk of bus contention.
• ESD Protection: The device includes input and output protection against electrostatic discharge, ensuring the reliability and longevity of the product.

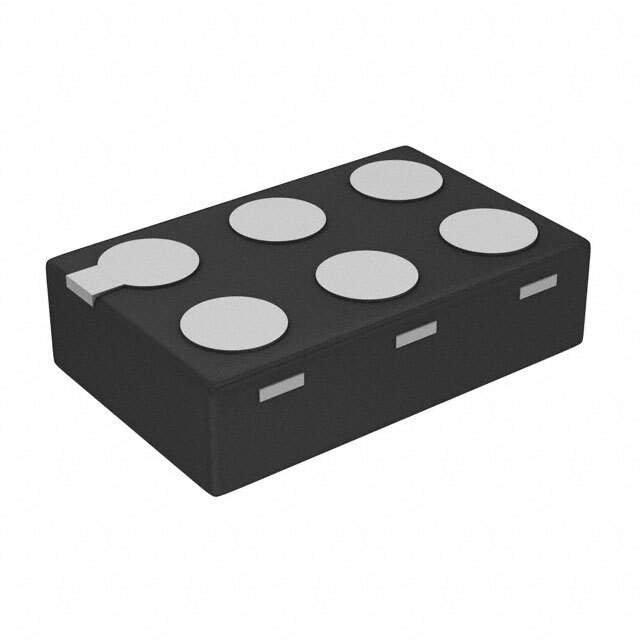

• Compact Packaging: The IC is available in a small X2-DFN1410-6 package, which is ideal for space-constrained applications.

Applications

The 74AUP1G125FX4-7 is well-suited for a variety of applications, including:

• Smartphones and Tablets
• Portable Media Players
• Portable Gaming Consoles
• Notebook and Ultrabook Computers
• Wireless Communication Systems
• Data Storage Devices
• And many other applications where a low-power buffer or line driver is required.

For more detailed information, technical specifications, and support documentation, please visit the Diodes Incorporated product page for the 74AUP1G125FX4-7.
