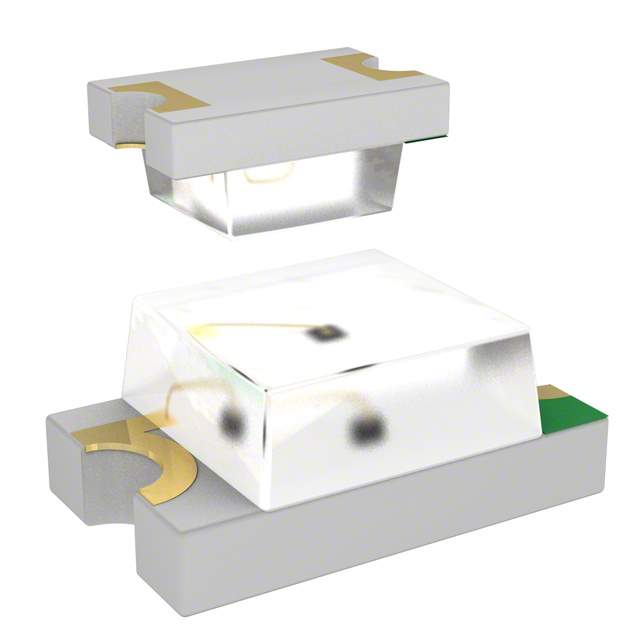

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Dialight
Packaging Reel - TR
Status Active
Color Green
Lens Color White
Lens Transparency Diffused
Millicandela Rating 6.4mcd
Lens Style/Size Rectangle with Flat Top, 1.19mm x 1.24mm
Forward Voltage 2.1V
Current - Test 20mA
Viewing Angle 150°
Mounting SMD (SMT)
Wavelength - Dominant 567nm
Wavelength - Peak 560nm
Case / Package 2-SMD
Height (Max) 0.79mm
Win Source Part Number 1006266-5975311407F
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian 5975311407F CAD Model

Description

The 1006266-5975311407F from Dialight is a green SMD LED with a viewing angle of 150 degrees.

  • Color: green
  • Mounting: SMD
  • Viewing Angle: 150 degrees
  • Forward Voltage: 2.1V
  • Millicandela Rating: 6.4mcd
  • Lens: white and diffused, rectangular shape and flat top measuring 1.19mm x 1.24mm
  • Packaging: reel
  • Quantity: 4k pcs
