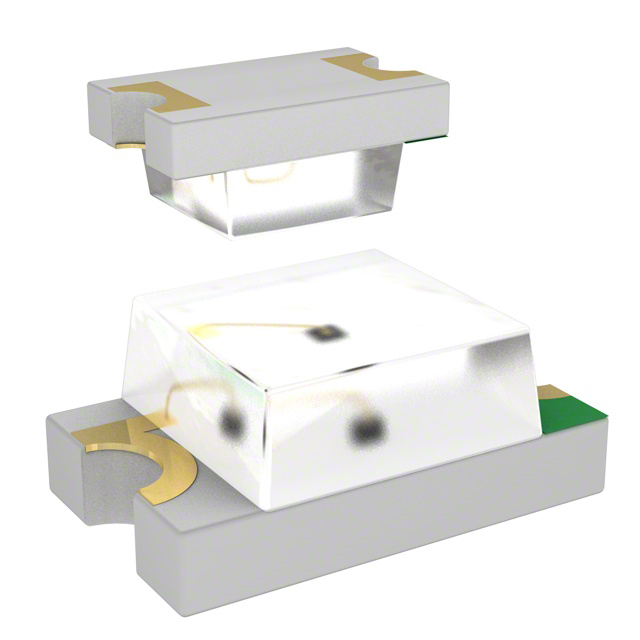

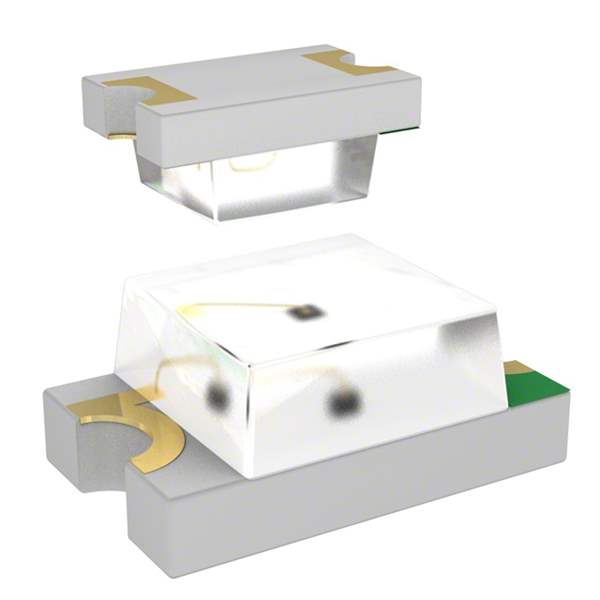

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category OptoelectronicsLED Indication - Discrete
Mfr Dialight
Series microLED?
Part Status Obsolete
Color Yellow
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 65mcd
Lens Style Rectangle with Flat Top
Lens Size 1.20mm x 1.25mm
Voltage - Forward (Vf) (Typ) 1.9V
Current - Test 20mA
Viewing Angle 156°
Mounting Type Surface Mount
Wavelength - Peak 594nm
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Size / Dimension 2.00mm L x 1.25mm W
Height (Max) 0.80mm
Base Product Number 5973222
Ultra Librarian 3D Model Ultra Librarian 5973222407F CAD Model
