Same model may have multiple batches, images only for reference.

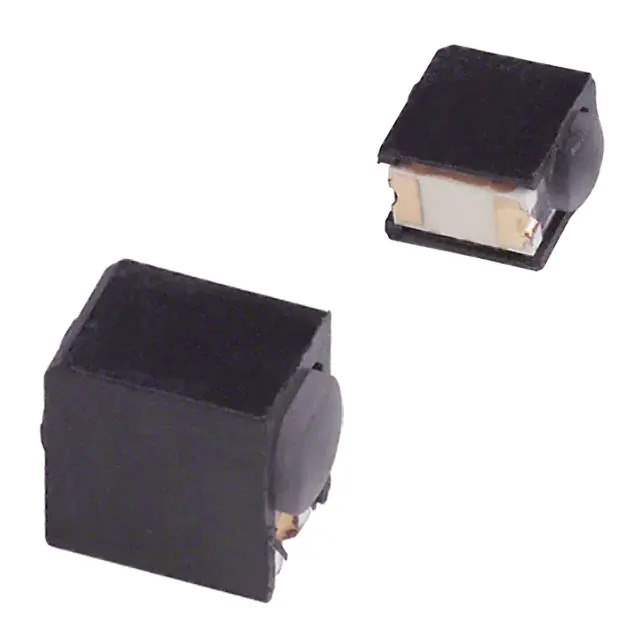

5952401013F Real Image
Same model may have multiple batches, images only for reference.

5952401013F

Part No 5952401013F
Manufacturer Dialight
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED PRISM 2MM HI PERF YELLOW SMD / LED Circuit Board Indicator LED Circuit Board Indicator Single Yellow 2.2V 20mA Surface Mount, Right Angle
Datasheet
5952401013F Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Dialight
Series 595
Package Tape & Reel
Product Status Obsolete
Color Yellow
Wavelength - Peak 580nm
Configuration Single
Current 20mA
Millicandela Rating 9mcd
Voltage Rating 2.2V
Mounting Type Surface Mount, Right Angle
Standard Package 2,300 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 856642-5952401013F
Ultra Librarian 3D Model Ultra Librarian 5952401013F CAD Model

Description

The 856642-5952401013F is a circuit board indicator from the 595 series manufactured by Dialight.

  • Series: 595
  • Color: Yellow
  • Application: Optoelectronic
  • Package: Tape and Reel
  • Voltage Rating: 2.2V
  • Standard Package: 2,300 pieces
  • Configuration: Single
  • Millicandela Rating: 9mcd
  • Peak Wavelength: 580nm
  • Current: 20mA
  • Mounting Type: Surface Mount, Right Angle
  • ECCN: EAR99
  • REACH Status: Unaffected
  • HTSUS Code: 8541.41.0000
  • Status: Obsolete
