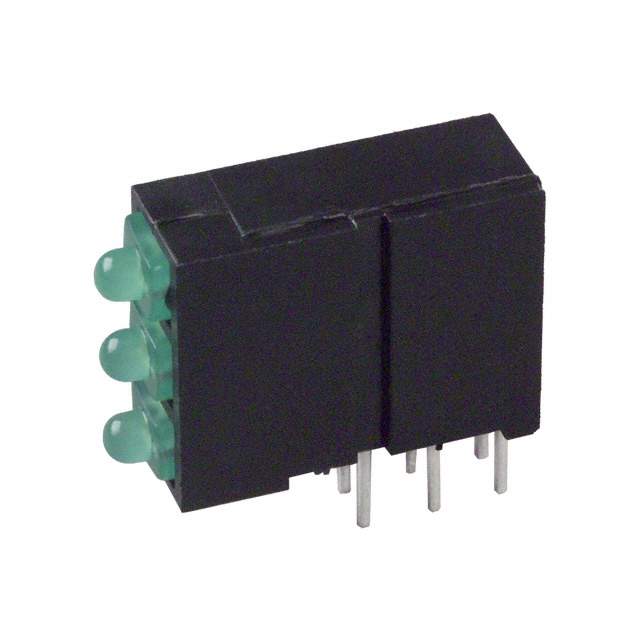

5700100222F Real Image
Same model may have multiple batches, images only for reference.

5700100222F

Part No 5700100222F
Manufacturer Dialight
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 3HI 2MM GREEN / LED Circuit Board Indicator LED Circuit Board Indicator 3 High Green (x 3) Diffused, Tinted 2.1V 20mA Through Hole, Right Angle
Datasheet
5700100222F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Manufacturer Dialight
Packaging Bulk
Color Green (x 3)
Wavelength - Peak 565nm
Configuration 3 High
Current 20mA
Millicandela Rating 8.7mcd
Viewing Angle 38°
Lens Type Diffused, Tinted
Voltage Rating 2.1V
Mounting Through Hole, Right Angle
Base Product Number 5700100
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Part Number 570-0100-222F,350-1806
Standard Package 25
Win Source Part Number 1331726-5700100222F
Ultra Librarian 3D Model Ultra Librarian 5700100222F CAD Model

Description

The Dialight 1331726-5700100222F is a green LED circuit board indicator that belongs to the optoelectronics family.

  • REACH: Unaffected
  • ROHS: ROHS3 compliant
  • Voltage Rating: 2.1V
  • Millicandela Rating: 8.7mcd
  • Viewing Angle: 38 degrees
  • Wavelength Peak: 565nm
  • Mounting Style: Through-hole, right-angle
