Same model may have multiple batches, images only for reference.

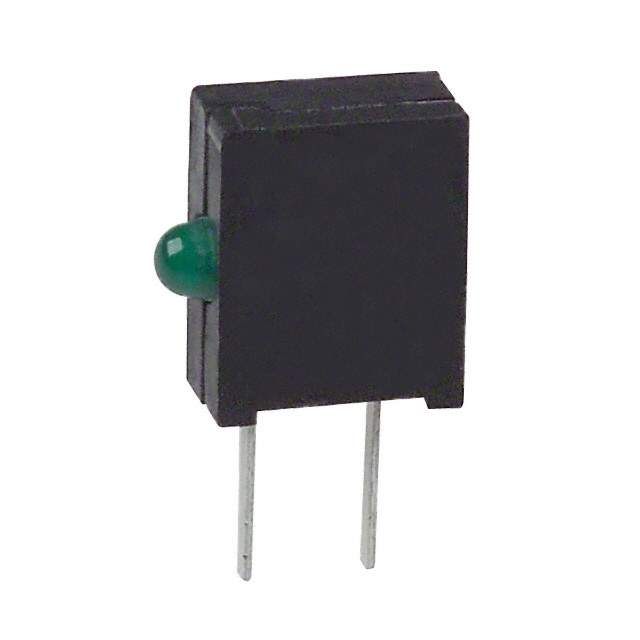

555-2301F Real Image
Same model may have multiple batches, images only for reference.

555-2301F

Part No 555-2301F
Manufacturer Dialight
Catalog Optics - LEDs - Light Pipes
Description Indicator Light LED PCB Mount 2mm Bulb Right Angle 40 Degree View 14mcd Grn
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Green
Current 20 mA
Depth 6.22 mm
Dominant Wavelength 565 nm
Element Configuration Single
Forward Current 20 mA
Forward Voltage 2.1 V
Height 6.35 mm
Illumination Color Green
Lead Free Lead Free
Length 2.54 mm
Lens Color Green
Lens Style Diffused
Luminous Intensity 1 mcd
Max Operating Temperature 100 °C
Min Operating Temperature -55 °C
Mount Through Hole
Number of Elements 1
Number of LEDs 1
Number of Pins 2
Operating Supply Voltage 3 V
Packaging Bulk
Power Dissipation 80 mW
Radiation Hardening No
REACH SVHC No SVHC
Reverse Voltage 3 V
RoHS Compliant
Schedule B 8541402000
Test Current 20 mA
Viewing Angle 40 °
Voltage Rating 2.4 V
Wavelength 565 nm
Width 2.54 mm
Win Source Part Number 1138141-555-2301F
Categories Optics - LEDs - Light Pipes
Manufacturer Dialight
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 555-2301F CAD Model

Description

The 1138141-555-2301F is a high-quality LED component from Dialight that is perfect for a wide range of applications.

  • Voltage Rating: 2.4 V
  • Luminous Intensity: 1 mcd
  • Lead-Free: Yes
  • RoHS Compliant: Yes
