Same model may have multiple batches, images only for reference.

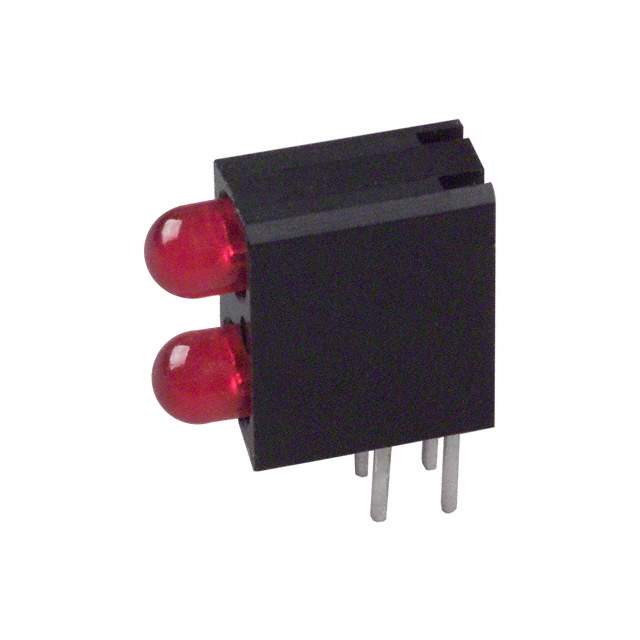

5530111F Real Image
Same model may have multiple batches, images only for reference.

5530111F

Part No 5530111F
Manufacturer Dialight
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 2HI 3MM RED PC MNT / LED Circuit Board Indicator LED Circuit Board Indicator 2 High Red (x 2) Diffused, Tinted 2V 10mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
Datasheet
5530111F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Manufacturer Dialight
Packaging Bulk
Color Red (x 2)
Wavelength - Peak 650nm
Configuration 2 High
Current 10mA
Millicandela Rating 10mcd
Viewing Angle 45°
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage Rating 2V
Mounting Through Hole, Right Angle
Base Product Number 5530111
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Part Number 350-1821,553-0111F
Standard Package 50
Win Source Part Number 1331717-5530111F
Ultra Librarian 3D Model Ultra Librarian 5530111F CAD Model

Description

The Dialight 5530111F is an optoelectronic component that is commonly used for LED circuit board indicators, arrays, light bars, and bar graphs.

  • Color: Red
  • Voltage: 2V
  • Current: 10mA
  • Millicandela Rating: 10mcd
  • Peak Wavelength: 650nm
  • Packaging: Bulk
  • Standard Package: 50
  • Mounting Configuration: Through hole, right angle
  • Viewing Angle: 45 degrees
  • Lens Type: Diffused and tinted with a round domed top style and a size of 3mm T-1
  • ECCN: EAR99
  • REACH: Unaffected
