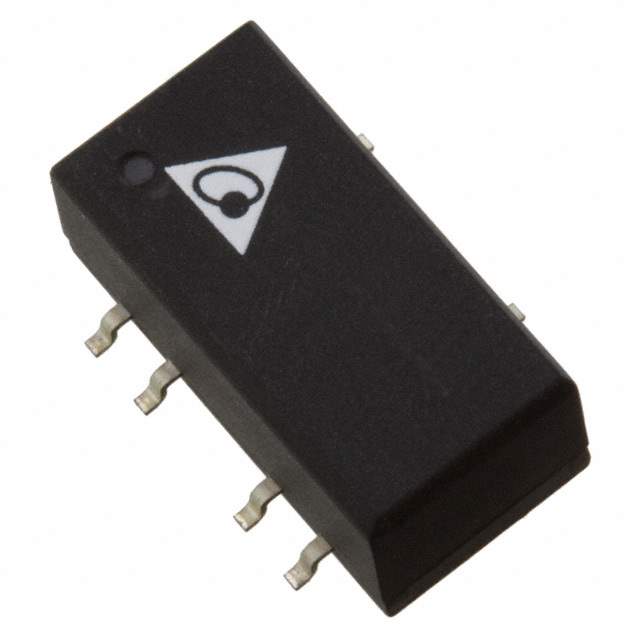

SH01D0512A

Get a Quote

Part No	SH01D0512A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 1W / Isolated Module DC DC Converter 2 Output 12V -12V 42mA, 42mA 4.5V - 5.5V Input
Datasheet	SH01D0512A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	SH01S/D (1W)
Package	Tube
Product Status	Not For New Designs
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	42mA, 42mA
Power (Watts)	1 W
Voltage - Isolation	1.5 kV
Applications	Medical
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	78%
Mounting	SMD (SMT)
Package / Case	8-SMD Module, 5 Leads
Dimension	0.54" L x 0.31" W x 0.28" H (13.7mm x 8.0mm x 7.0mm)
Base Product Number	SH01D
Other Names	941-1286
Standard Package	10
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237411-SH01D0512A
Ultra Librarian 3D Model	Ultra Librarian SH01D0512A CAD Model

Alternative Products

Description

The Delta Electronics SH01D0512A is a DC DC converter power supply suitable for medical applications.

Type: Isolated module
Features: SCP
Power: 1W
Outputs: Two
Voltage Output: 12V and -12V
Voltage Isolation: 1.5 kV
Number of Outputs: 2
Voltage Input Range: 4.5V to 5.5V
Current Output: 42mA for both outputs
Mounting: SMD (SMT)
Package: Tube
Efficiency: 78%
Temperature Range: -40°C to 85°C
ECCN: EAR99
REACH: Unaffected
