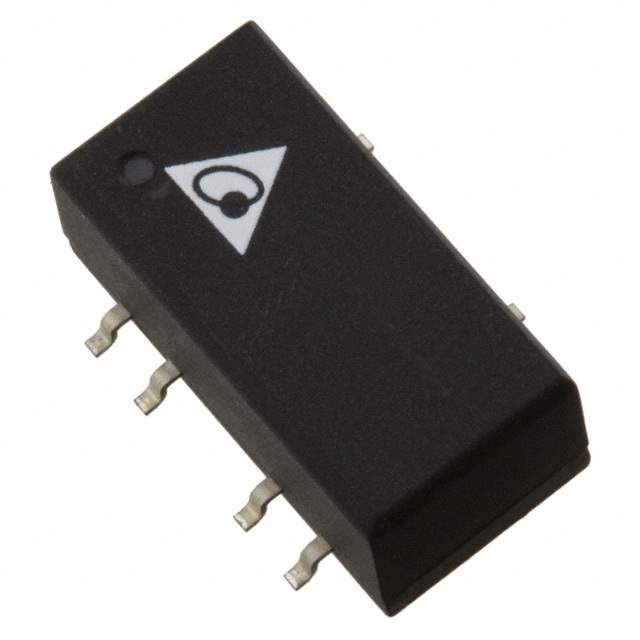

SH01D0505A

Name: SH01D0505A
Brand: Delta Electronics
SKU: 1237410
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SH01D0505A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-5V 1W / Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 4.5V - 5.5V Input
Datasheet	SH01D0505A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	SH01S/D (1W)
Package	Tube
Product Status	Not For New Designs
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Current - Output (Max)	100mA, 100mA
Power (Watts)	1 W
Voltage - Isolation	1.5 kV
Applications	Medical
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	74%
Mounting	SMD (SMT)
Package / Case	8-SMD Module, 5 Leads
Dimension	0.54" L x 0.31" W x 0.28" H (13.7mm x 8.0mm x 7.0mm)
Base Product Number	SH01D
Other Names	941-1285
Standard Package	10
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237410-SH01D0505A
Ultra Librarian 3D Model	Ultra Librarian SH01D0505A CAD Model

Alternative Products

Description

The SH01D0505A is a DC-DC converter manufactured by Delta Electronics.

Type: Isolated module
Power: 1W
Features: SCP
Package: Tube
Application: Medical
Outputs: Two
Maximum Output Current: 100mA each
Input Voltage: 4.5V to 5.5V
Isolation Voltage: 1.5kV
Status: Not for new designs
