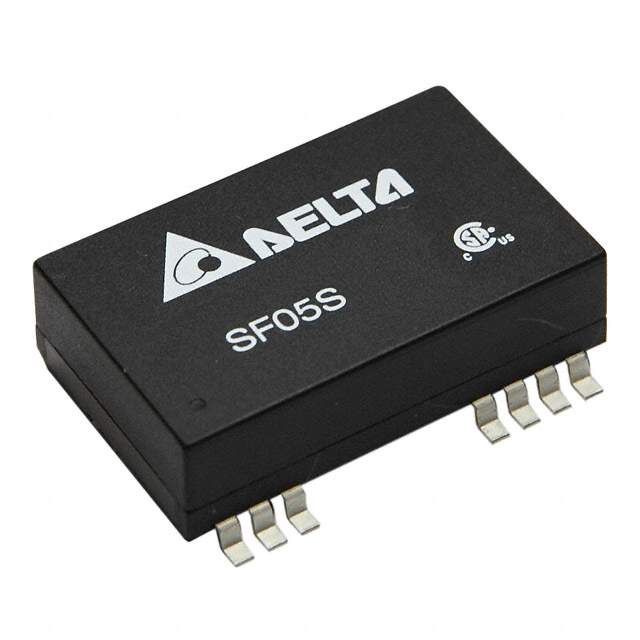

Same model may have multiple batches, images only for reference.

SF05S2403A

Get a Quote

Part No	SF05S2403A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 5W / Isolated Module DC DC Converter 1 Output 3.3V 1.2A 18V - 36V Input
Datasheet	SF05S2403A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	SF05S/D (5W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	3.3V
Current - Output (Max)	1.2A
Power (Watts)	5 W
Voltage - Isolation	1.5 kV
Applications	Medical
Features	Remote On/Off, OCP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 71°C
Efficiency	78%
Mounting	SMD (SMT)
Package / Case	24-SMD Module, 12 Leads
Dimension	1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm)
Control Features	Enable, Active High
Base Product Number	SF05S
Other Names	941-1366
Standard Package	10
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237436-SF05S2403A
Ultra Librarian 3D Model	Ultra Librarian SF05S2403A CAD Model

Alternative Products

Description

The SF05S/D (5W) series from Delta Electronics offers an isolated module type DC DC converter with remote on/off, OCP, SCP, and UVLO features.

Voltage Isolation: 1.5 kV
Maximum Output Current: 1.2A
Efficiency: 78%
Package Type: 24-SMD module, 12 leads package type
Application: suitable for medical applications
