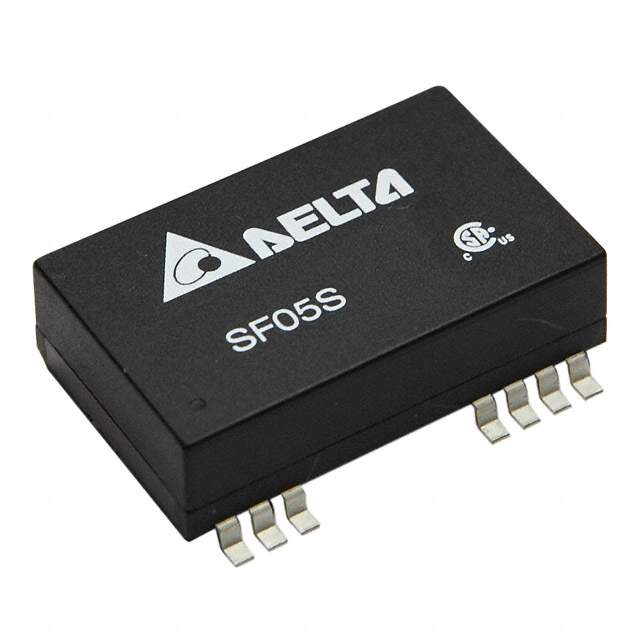

Same model may have multiple batches, images only for reference.

SF05S1205A

Get a Quote

Part No	SF05S1205A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 5W / Isolated Module DC DC Converter 1 Output 5V 1A 9V - 18V Input
Datasheet	SF05S1205A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	SF05S/D (5W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	5V
Current - Output (Max)	1A
Power (Watts)	5 W
Voltage - Isolation	1.5 kV
Applications	Medical
Features	Remote On/Off, OCP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 71°C
Efficiency	80%
Mounting	SMD (SMT)
Package / Case	24-SMD Module, 12 Leads
Dimension	1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm)
Control Features	Enable, Active High
Base Product Number	SF05S
Other Names	941-1363
Standard Package	10
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237430-SF05S1205A
Ultra Librarian 3D Model	Ultra Librarian SF05S1205A CAD Model

Alternative Products

Description

The SF05S1205A is a 5W isolated module DC-DC converter manufactured by Delta Electronics.

Features: remote on/off feature, over current protection, short circuit protection, and under voltage lockout
Efficiency: 80%
Application: suitable for use in medical applications
Voltage Isolation: 1.5 kV
Current Output: 1A
Input Voltage Range: between 9V and 18V
Output Voltage: 5V
Supply and Demand Status: balance
