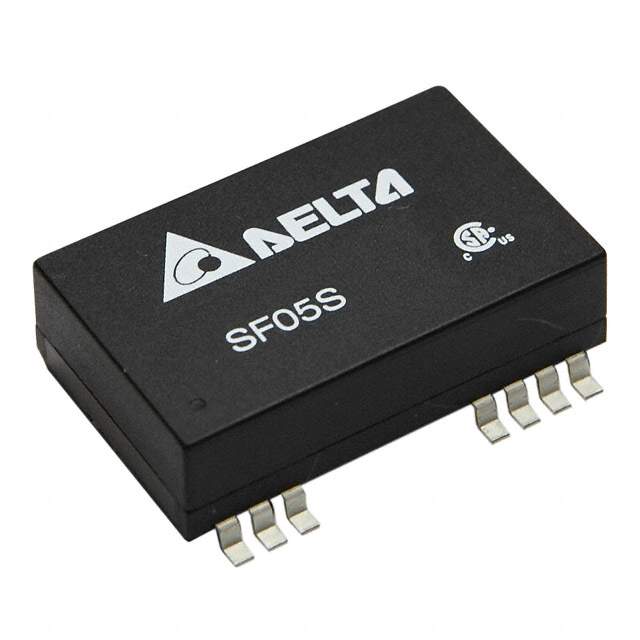

Same model may have multiple batches, images only for reference.

SF05S1203A

Get a Quote

Part No	SF05S1203A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 5W / Isolated Module DC DC Converter 1 Output 3.3V 1.2A 9V - 18V Input
Datasheet	SF05S1203A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	SF05S/D (5W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	3.3V
Current - Output (Max)	1.2A
Power (Watts)	5 W
Voltage - Isolation	1.5 kV
Applications	Medical
Features	Remote On/Off, OCP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 71°C
Efficiency	76%
Mounting	SMD (SMT)
Package / Case	24-SMD Module, 12 Leads
Dimension	1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm)
Control Features	Enable, Active High
Base Product Number	SF05S
Other Names	941-1362
Standard Package	10
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237431-SF05S1203A
Ultra Librarian 3D Model	Ultra Librarian SF05S1203A CAD Model

Alternative Products

Description

The SF05S/D (5W) isolated module is a power supply board mount DC DC converter designed for medical applications.

Features: remote On/Off, OCP, SCP, UVLO
Efficiency: 76%
Voltage-Isolation: 1.5 kV
Output: single output with a maximum output current of 1.2A
Input Voltage Range: between 9V to 18V
Output Voltage: 3.3V
Control Features: include enable and active high
Package: 24-SMD module, 12 leads
Mounting: SMD (SMT)
Dimension: 1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm)
