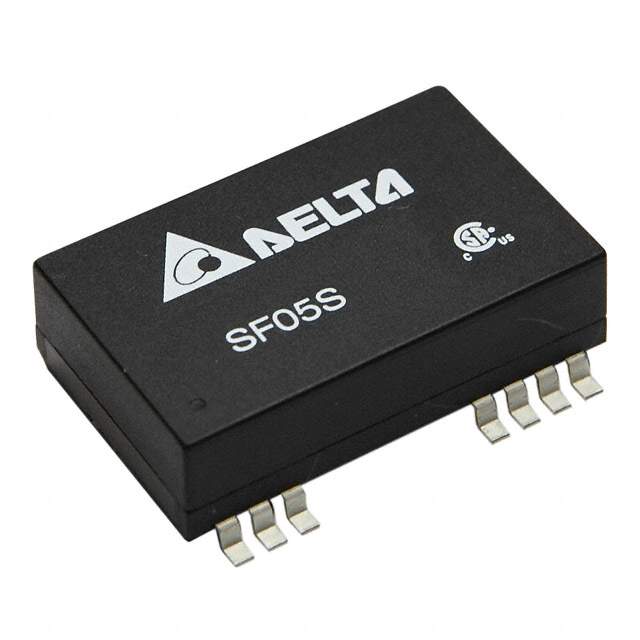

Same model may have multiple batches, images only for reference.

SF05D4815A

Get a Quote

Part No	SF05D4815A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 5W / Isolated Module DC DC Converter 2 Output 15V -15V 167mA, 167mA 36V - 75V Input
Datasheet	SF05D4815A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	SF05S/D (5W)
Package	Tube
Product Status	Not For New Designs
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	167mA, 167mA
Power (Watts)	5 W
Voltage - Isolation	1.5 kV
Applications	Medical
Features	Remote On/Off, OCP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 71°C
Efficiency	85%
Mounting	SMD (SMT)
Package / Case	24-SMD Module, 12 Leads
Dimension	1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm)
Control Features	Enable, Active High
Base Product Number	SF05D
Other Names	941-1382
Standard Package	10
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237427-SF05D4815A
Ultra Librarian 3D Model	Ultra Librarian SF05D4815A CAD Model

Alternative Products

Description

The Delta Electronics SF05D4815A is a 5W isolated module DC DC converter that comes in a 24-SMD module, 12 leads package.

Features: remote on/off, OCP, SCP, and UVLO features
Application: suitable for medical applications
Outputs: two outputs with a maximum output current of 167mA
Voltage Isolation: 1.5kV
Efficiency: 85%
Operating Temperature Range: -40°C to 71°C
Recommendation: It is not for new designs and has a low popularity rating
HTSUS Code: 8504.40.9580
ECCN: EAR99
