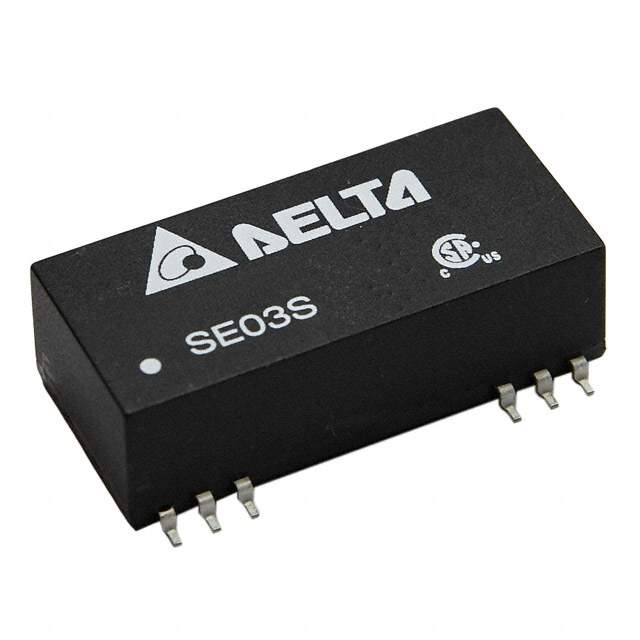

Same model may have multiple batches, images only for reference.

SE03D4805A

Name: SE03D4805A
Brand: Delta Electronics
SKU: 1237440
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SE03D4805A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-5V 3W / Isolated Module DC DC Converter 2 Output 5V -5V 300mA, 300mA 36V - 75V Input
Datasheet	SE03D4805A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	SE03S/D (3W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Current - Output (Max)	300mA, 300mA
Power (Watts)	3 W
Voltage - Isolation	1.5 kV
Applications	Medical
Features	SCP, UVLO
Temperature Range - Operating	-40°C ~ 71°C
Efficiency	79%
Mounting	SMD (SMT)
Package / Case	24-SMD Module, 12 Leads
Dimension	1.27" L x 0.74" W x 0.40" H (32.3mm x 18.8mm x 10.2mm)
Base Product Number	SE03D
Other Names	941-1359
Standard Package	10
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237440-SE03D4805A
Ultra Librarian 3D Model	Ultra Librarian SE03D4805A CAD Model

Alternative Products

Description

The Delta Electronics SE03S/D (3W) is an isolated module DC-DC converter with a package of 24-SMD module, 12 leads.

Application: designed for medical applications
Standard Package: 10
Outputs: two outputs with maximum output currents of 300mA and 300mA
Input Voltage: ranging from 36V to 75V
Voltage Isolation: 1.5 kV
Efficiency: 79%
Features: SCP and UVLO features
Operating Temperature Range: -40°C to 71°C
Dimension: 1.27" L x 0.74" W x 0.40" H (32.3mm x 18.8mm x 10.2mm)
Mounting: SMD (SMT) technology
Manufacturer: Delta Electronics
