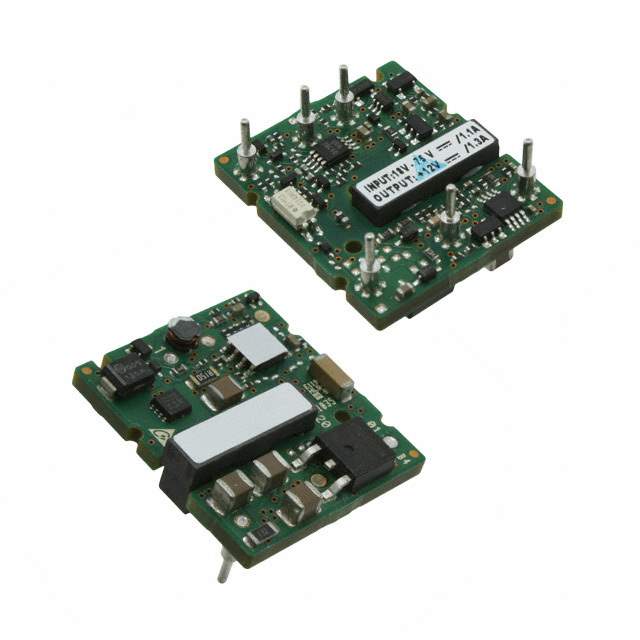

Same model may have multiple batches, images only for reference.

S36SE3R305NRFB

Name: S36SE3R305NRFB
Brand: Delta Electronics
SKU: 1237552
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	S36SE3R305NRFB
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 17W / Isolated Module DC DC Converter 1 Output 3.3V 5A 18V - 75V Input
Datasheet	S36SE3R305NRFB Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	Delphi S36SE (17W)
Package	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	3.3V
Current - Output (Max)	5A
Power (Watts)	17 W
Voltage - Isolation	2.25 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating	-40°C ~ 123°C
Efficiency	86.5%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Dimension	1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.7mm)
Control Features	Enable, Active Low
Base Product Number	S36SE
Other Names	941-1005
Standard Package	36
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237552-S36SE3R305NRFB
Ultra Librarian 3D Model	Ultra Librarian S36SE3R305NRFB CAD Model

Alternative Products

Description

The Delphi S36SE (17W) is an isolated module DC-DC converter with a package of 6-DIP module.

Features: Remote on/off, OCP, OTP, OVP, and UVLO
Application: ITE (commercial)
Voltage Isolation: 2.25 kV
Number of Outputs: 1
Output Current (Max): 5A
Input Voltage: 18V to 75V
Output Voltage: 3.3V
Efficiency: 86.5%
Operating Temperature: -40°C to 123°C
Dimension: 1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.7mm)
