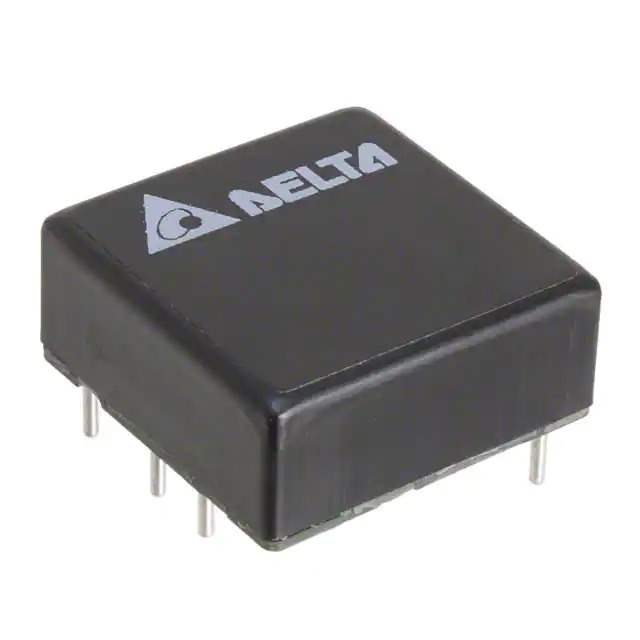

Same model may have multiple batches, images only for reference.

S24SE12002PDFA

Name: S24SE12002PDFA
Brand: Delta Electronics
SKU: 846885
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

Part No	S24SE12002PDFA
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 20W
Datasheet	S24SE12002PDFA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Delta Electronics
Series	S24SE (20W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	12V
Current - Output (Max)	1.67A
Power (Watts)	20 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	88%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimension	1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Control Features	Enable, Active High
Base Product Number	S24SE
Standard Package	10 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	846885-S24SE12002PDFA
Ultra Librarian 3D Model	Ultra Librarian S24SE12002PDFA CAD Model

Alternative Products

Description

The S24SE12002PDFA is a 20W isolated module DC-DC converter from Delta Electronics.

Size: 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Application: ITE (Commercial)
Power Rating: 20W
Features: Remote On/Off, UVLO
Package: Tube
Voltage Isolation: 1.6 kV
Output: Single
Maximum Output Current: 1.67A
Input Voltage: 9V to 36V
Output Voltage: 12V
Efficiency: 88%
Mounting: Through-Hole
Operating Temperature: -40°C to 85°C
Product Status: Active
