Same model may have multiple batches, images only for reference.

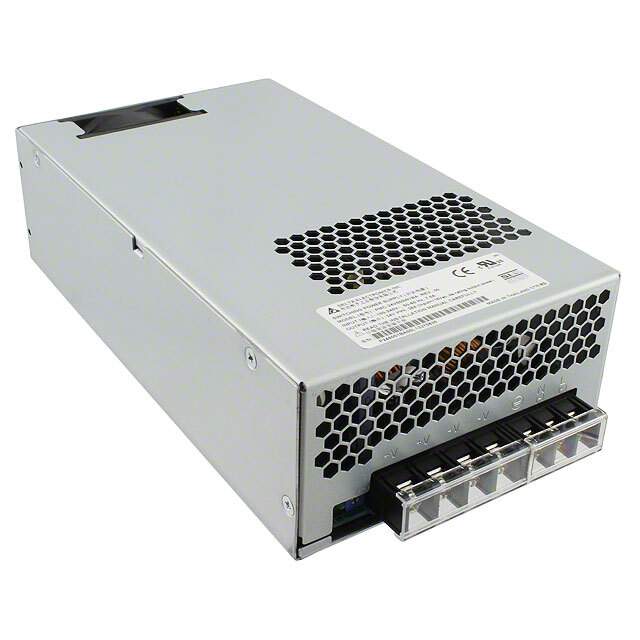

PMC-24V600W1BA Real Image
Same model may have multiple batches, images only for reference.

PMC-24V600W1BA

Part No PMC-24V600W1BA
Manufacturer Delta Electronics
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 24V 600W / Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
Datasheet
PMC-24V600W1BA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - AC DC Converters
Mfr Delta Electronics
Series PMC (600W)
Package Bulk
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 264 VAC
Voltage - Output 1 24V
Current - Output 1 25 A
Power (Watts) 600W
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 80%
Temperature Range - Operating -20°C ~ 70°C (With Derating)
Features Adjustable Output, DC Input Capable, PFC, Universal Input
Mounting Type Chassis Mount
Size / Dimension 8.46" L x 4.72" W x 2.40" H (215.0mm x 120.0mm x 61.0mm)
Approval Agency CB Scheme, CE, EAC, EN, SIQ, UL
Standard Number 50581; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 62368-1;
Base Product Number PMC-24
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.6018
Win Source Part Number 1338646-PMC-24V600W1BA
Ultra Librarian 3D Model Ultra Librarian PMC-24V600W1BA CAD Model

Description

The Delta Electronics PMC-24V600W1BA is an enclosed AC-DC converter with a power rating of 600W.

  • Power: 600W
  • Voltage Input: 85 ~ 264 VAC
  • Voltage Output: 24V
  • Voltage Isolation: 3 kV
  • Efficiency: 80%
  • Application: ITE (Commercial)
  • Packaging: Bulk
  • Dimension: 8.46" L x 4.72" W x 2.40" H (215.0mm x 120.0mm x 61.0mm)
  • Mounting Type: Chassis Mount
  • Temperature Range: -20°C to 70°C (With Derating)
  • Approvals: CB Scheme, CE, EAC, EN, SIQ, UL
