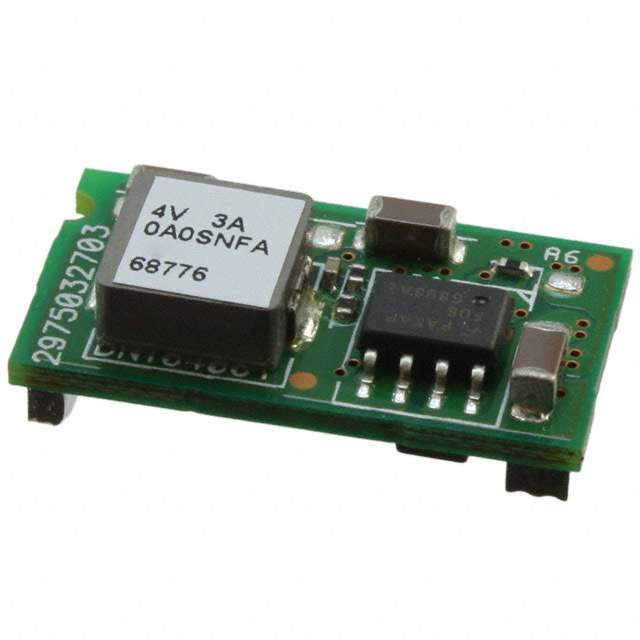

Same model may have multiple batches, images only for reference.

DNT04S0A0S03NFA

Name: DNT04S0A0S03NFA
Brand: Delta Electronics
SKU: 1335166
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DNT04S0A0S03NFA
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 0.75-3.63V 10W / Non-Isolated PoL Module DC DC Converter 1 Output 0.75 ~ 3.63V 3A 2.4V - 5.5V Input
Datasheet	DNT04S0A0S03NFA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Delta Electronics
Packaging	Reel - TR
Product Status	Last Time Buy
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	2.4V
Voltage - Input (Max)	5.5V
Voltage - Output 1	0.75 ~ 3.63V
Current - Output (Max)	3A
Power (Watts)	10 W
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	93%
Mounting	Surface Mount
Case / Package	5-SMD Module
Size / Dimension	0.80" L x 0.45" W x 0.27" H (20.3mm x 11.4mm x 6.9mm)
Control Features	Enable, Active Low
Base Product Number	DNT04S0
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	941-1061-6,941-1061-1,941-1061-2
Standard Package	300
Win Source Part Number	1335166-DNT04S0A0S03NFA
Ultra Librarian 3D Model	Ultra Librarian DNT04S0A0S03NFA CAD Model

Alternative Products

Description

The Delta Electronics DNT04S0A0S03NFA is a non-isolated PoL module electronic component product.

Packaging: Reel-TR
Dimensions: 0.80" L x 0.45" W x 0.27" H (20.3mm x 11.4mm x 6.9mm)
Power: 10 W
Current Output (max): 3A
Supply Voltage: 2.4V to 5.5V
Efficiency: 93%
Operating Temperature: -40°C to 85°C
ROHS3 Compliant: Yes
Supply and Demand Status: Last Time Buy
